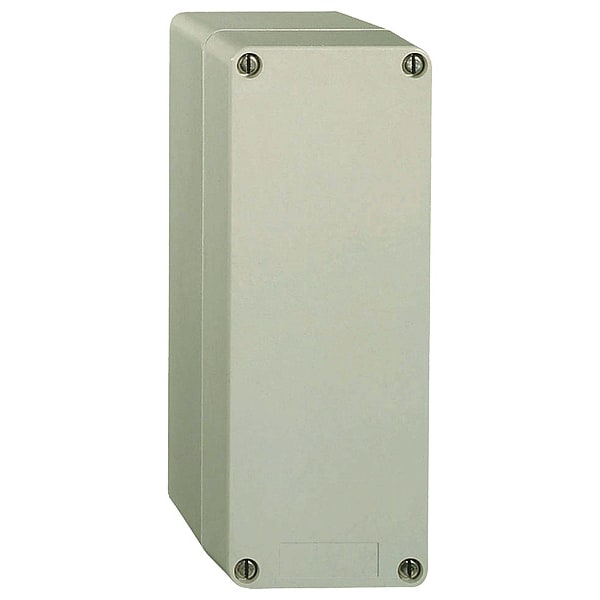

Recinto de control, sin agujeros, de plástico.
| Number of Columns | 0 |
|---|---|
| Item | Control Station Enclosure |
| Hole Size | Not Applicable |
| Material | Glass Reinforced Polyester |
| Conduit Size | No Conduit Entrance Holes Provided |
| Dimensions | 226 mm H x 85 mm W x 12 mm D |
| Cable Entry | undrilled |
| Height | 226 mm |
| Width | 85 mm |
| Depth | 12 mm |
| Color | Gray |
| Mounting Style | Surface |
| Standards | RoHS |
| For Use With | XAPZ200 |
| Type | Product or component type : Empty control station without hinges |
| Resistance To Chemical Agents | high resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water |
| Fire Resistance | 850°C NF C 20-455 || 960°C IEC 92 |
| Product Front Plate Size | 85 mm x 226 mm |
| Device Short Name | XAPA |
| Ip Degree Of Protection | IP65 IEC 60529 || IP69 NF C 20-010 || IP69K |
| Usable Depth | 83 mm |
| Protective Treatment | TH || TC |
| Overvoltage Category | class II IEC 60536 || class II NF C 20-030 |
| Device Mounting | flush |
| Colour Of Cover | grey |
| Ambient Air Temperature For Storage | -40-70°C |
| Number Of Cut-Out | undrilled |
| Ambient Air Temperature For Operation | -40-70°C |
| Colour Of Base Of Enclosure | grey |
| Flame Retardance | M3 conforming to CSTB || VO conforming to UL 94 |
| Product Or Component Type | control station, empty station |
| Panel Cutout Diameter | Not Applicable |
| Compatible with Series | XB4 |
| Compatible Conduit Size - Maximum | No Conduit Entrance Holes Provided |
| Overall Width | 3-3/8 in |
| Overall Height | 8-7/8 in |
| Overall Depth | 3-7/16 in |
| Package Quantity | 1 |
