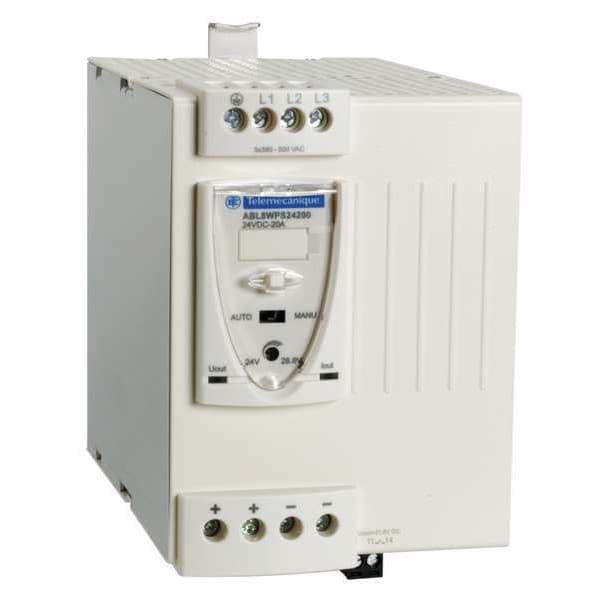

DC Power Supply, 380/500V AC, 24V DC, 480W, 20A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 380/500V AC |
| Output Voltage | 24V DC |
| Power Rating | 480 W |
| Output Amps | 20 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Three |
| Style | Switching |
| Height | 5.63 in |
| Width | 6.1 in |
| Depth | 3.74 in |
| Hz | 50/60 Hz |
| Status Indicator | Green/Orange/Red LED, Green/Red LED |
| IP Rating | IP10/20 |
| Output Noise | Less Than or Equal to 200mV |
| Peak Amps | 1.5 |
| Operating Temp. Range | -13 to 140 deg F |
| Hold Up Time | Greater than 18 msec |
| Series | ABL |
| Features | A High Degree Of Output Voltage Stability, A Very Wide Input Voltage Range For The Universal Range, And Undervoltage Protection, Diagnostics Via LED Indicators On The Front Panel, Good Performance, Integrated Overload, Overvoltage, Remote Diagnostics Via A Relay Contact For The Universal Range, Short Circuit, Very Compact Size |
| Standards | cCSAus, CSA C22.2 No. 60950-1, EN/IEC 62368-1, KC, RCM, UL 508, UL Listed |
| Includes | Power Factor Correction Filter |
| Protection | Overload Manual or Automatic Reset; Overvoltage 30 to 32V, Manual Reset; Short-Circuits Manual or Automatic Reset; Undervoltage Tripping if U Less Than 21.6V; Thermal Automatic Reset |
| Connection | Screw |
| Current - Output | 20 A |
| Current - Inrush | 25 A |
| Input Frequency - Nominal | 50/60 Hz |
| Housing Material | Plastic |
| Wire Size - Minimum | 22 AWG |
| Manufacturer Warranty | 18 mo |
| Wire Size - Maximum | 12 AWG |
| Wire Connection Type | Terminals |
| Operating Temperature - Maximum | 140 deg F |
| Current - Peak | 1.5 A |
| Operating Temperature - Minimum | -13 deg F |
| Output Power - Rated | 480 W |
| Package Quantity | 1 |
