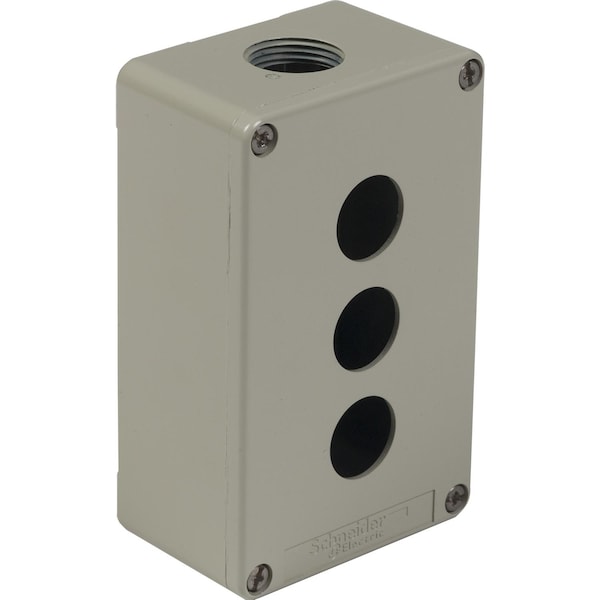

Estación de control vacía de fundición a presión, Harmony XAP de Schneider Electric, fabricada en aleación de zinc de color gris, con 3 recortes de 22 mm y medidas de 130x80x51.5mm.
| Item | Pushbutton Enclosure 22Mm Xap +Options |
|---|---|
| Material | die cast zinc |
| Cable Entry | cable gland || 1 x cable gland |
| Ik Degree Of Protection | IEC, IK07 EN 62262 |
| Cut-Out Dimensions | 22 mm (Ø) |
| Number Of Vertical Rows | 1 |
| Colour Of Base Of Enclosure | grey RAL 7032 |
| Device Short Name | XAPG |
| Ambient Air Temperature For Operation | -25-70°C |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Product Or Component Type | die-cast empty control station |
| Electrical Shock Protection Class | class I IEC 60536 || class I NF C 20-030 |
| Number Of Cut-Out | 3 cut-outs |
| Cad Overall Width | 80 mm |
| Thread Type | 3/4 NPT |
| Colour Of Cover | grey RAL 7032 |
| Cad Overall Height | 130 mm |
| Product Destination | for control and signalling units |
| Protective Treatment | TH |
| Cad Overall Depth | 51.5 mm |
| Control Station Type | metal |
| Number Of Horizontal Rows | 3 |
| Ip Degree Of Protection | IP65 IEC 60529 || IP657 NF C 20-010 |
| Ambient Air Temperature For Storage | -40-70°C |
| Compatibility Code | XAPG |
| Range of Product | Harmony XAP |
| Package Quantity | 1 |
