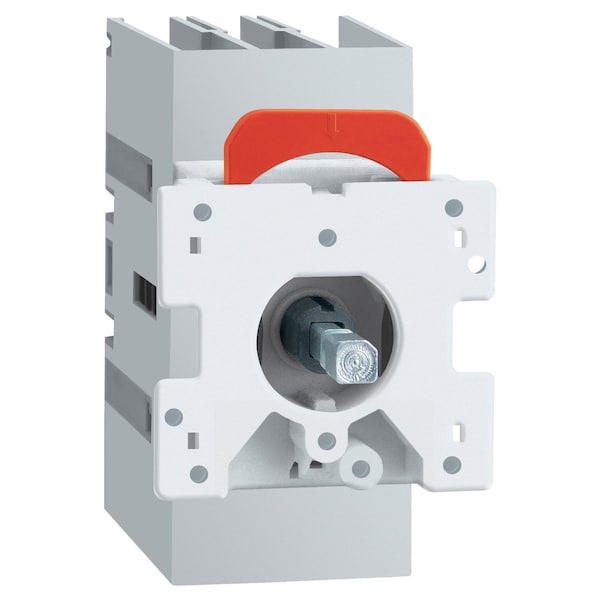

Interruptor de desconexión, 25 A, 32 A, 690V AC, 3 polos.
| Item | Disconnect Switch |
|---|---|
| Amps | 25, 32 |
| Voltage | 690 V AC |
| Number of Poles | 3 |
| HP | 29.5 HP @ 690V AC, 24.8 HP @ 500V AC, 20 HP @ 400V AC |
| Contact Form | 3NO |
| IP Rating | 20 |
| Duty | Intermittent |
| Includes | Rotary Handle |
| Width | 1.42 in |
| Depth | 3.07 in |
| Standards | UL 508, IEC 60947-3, CSA C22.2 No 14 |
| Height | 2.95 in |
| Use | Body Switch Disconnector |
| Color | Gray |
| [Ie] Rated Operational Current | 32 A Ue: 600 V UL 508 || 32 A AC-21A Ue: 400 V || 32 A AC-21A Ue: 500 V || 32 A AC-21A Ue: 690 V || 32 A AC-22A Ue: 400 V || 32 A AC-22A Ue: 500 V || 32 A AC-22A Ue: 690 V || 32 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V |
| Rated Conditional Short-Circuit Current | 50 kA 400 V 32 A gG |
| Mechanical Robustness | vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Range | TeSys |
| [Icw] Rated Short-Time Withstand Current | 800 A 690 V 1 s |
| Fire Resistance | 960°C IEC 60695-2-11 |
| Mounting Support | door |
| Device Short Name | VLS3P |
| Breaking Capacity | 48 A 690 V AC-21A) || 96 A 690 V AC-22A) || 256 A 690 V AC-23A) |
| [Icm] Rated Short-Circuit Making Capacity | 1128 A 690 V |
| Product Certifications | cULus || GL |
| Connections - Terminals | power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end |
| Poles Description | 3P |
| Making Capacity | 320 A 690 V AC-23A || 48 A 690 V AC-21A || 96 A 690 V AC-22A |
| [Ithe] Conventional Enclosed Thermal Current | 32 A |
| Electrical Durability | 100000 cycles AC-21A |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Product Name | TeSys VARIO LS |
| Performance Level | high performance |
| Product Or Component Type | switch body |
| Network Frequency | 50/60 Hz |
| Intermittent Duty Class | class 120 - 60 % |
| Ambient Air Temperature For Operation | -25-55°C |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz |
| Mechanical Durability | 100,000 cycle |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| [Ith] Conventional Free Air Thermal Current | 32 A 55°C |
| Tightening Torque | power circuit 1.8-2 N.m screw clamp terminals |
| Rated Operational Power In W | 15 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A) |
| Network Type | AC |
| Contacts Type And Composition | 3 NO |
| UL Rated Operational Voltage | 600 V AC 50/60 Hz UL 508 |
| Rated Operational Current | 32 A Ue: 600 V UL 508; 32 A AC-21A Ue: 400 V; 32 A AC-21A Ue: 500 V; 32 A AC-21A Ue: 690 V; 32 A AC-22A Ue: 400 V; 32 A AC-22A Ue: 500 V; 32 A AC-22A Ue: 690 V; 32 A AC-23A Ue: 400 V; 25 A AC-23A Ue: 500 V; 25 A AC-23A Ue: 690 V |
| Rated Operational Voltage | 690 V AC 50/60 Hz |
| Short Circuit Current Rating | Fuse RK5 45 A maximum: 5 kA at 600 V AC |
| UL Maxium Horsepower Ratings | 10 hp 200/208 V AC; 10 hp 240 V AC; 20 hp 480 V AC; 20 hp 600 V AC; 2 hp 120 V AC; 5 hp 240 V AC |
| Conventional Free Air Thermal Current | 32 A (at 131°F (55°C)) |
| UL Wire Size | AWG 18 to AWG 6 copper |
| Iec Rated Operational Power in W | 15 kW 400 V AC-23A; 18.5 kW 500 V AC-23A; 22 kW 690 V AC-23A) |
| IEC Terminal Connection | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid; Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - without cable end |
| Package Quantity | 1 |
