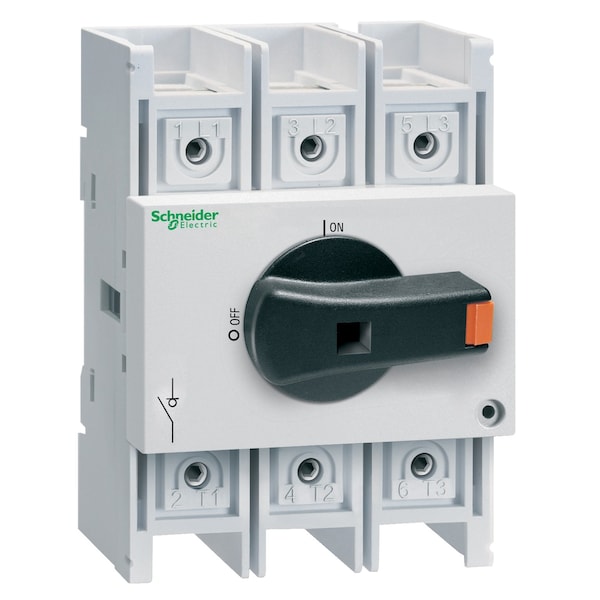

Interruptor de desconexión, 47 A, 63 A, 80 A, 100 A, 690V CA, 3 polos.
| Item | Disconnect Switch |
|---|---|
| Amps | 47, 63, 80, 100 |
| Duty | Intermittent |
| Voltage | 690 V AC |
| HP | 60.3 @ 400V AC, 60.3 @ 500V AC, 60.3 @ 690V AC |
| IP Rating | 20 |
| Number of Poles | 3 |
| Contact Form | 3NO |
| Depth | 3.94 in |
| Height | 2.76 in |
| Standards | CSA C22.2 No 4, IEC 60947-3, UL98 |
| Width | 2.76 in |
| Includes | Rotary Handle |
| Use | Body Switch Disconnector |
| Color | Gray |
| Range | TeSys |
| Fixing Mode | by clips back |
| [Icw] Rated Short-Time Withstand Current | 2500 A 690 V 1 s |
| Suitability For Isolation | yes |
| Intermittent Duty Class | class 120 - 60 % |
| Rated Conditional Short-Circuit Current | 50 kA 400 V 80 A gG |
| Mechanical Durability | 30,000 cycle |
| Mounting Support | back DIN rail |
| Breaking Capacity | 120 A 690 V AC-21A) || 240 A 690 V AC-22A) || 640 A 690 V AC-23A) |
| Making Capacity | 120 A 690 V AC-21A || 240 A 690 V AC-22A || 800 A 690 V AC-23A |
| Compatibility Code | VLS |
| Contacts Type And Composition | 3 NO |
| Poles Description | 3P |
| Product Or Component Type | switch body |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz |
| Device Composition | handle || switch |
| Rotary Handle Mounting Style | direct |
| Connections - Terminals | power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end |
| [Icm] Rated Short-Circuit Making Capacity | 3550 A 690 V |
| Product Certifications | cULus || GL |
| [Ith] Conventional Free Air Thermal Current | 80 A 55°C |
| Marking | 0 - 1 |
| [Ie] Rated Operational Current | 100 A Ue: 600 V UL98 || 80 A AC-21A Ue: 400 V || 80 A AC-21A Ue: 500 V || 80 A AC-21A Ue: 690 V || 80 A AC-22A Ue: 400 V || 80 A AC-22A Ue: 500 V || 80 A AC-22A Ue: 690 V || 80 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V |
| Device Short Name | VLS3P |
| Ambient Air Temperature For Operation | -25-55°C |
| Network Type | AC |
| Performance Level | high performance |
| Network Frequency | 50/60 Hz |
| Handle Front Plate Colour | grey |
| Control Type | rotary handle |
| Tightening Torque | power circuit 5-6 N.m screw clamp terminals |
| Fire Resistance | 960°C IEC 60695-2-11 |
| Rotary Handle Padlocking | 1 padlock 4-4 mm |
| [Ithe] Conventional Enclosed Thermal Current | 80 A |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Mechanical Robustness | vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Rated Operational Power In W | 45 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A) |
| Handle Colour | black |
| Electrical Durability | 30000 cycles AC-21 |
| Product Name | TeSys VARIO LS |
| Package Quantity | 1 |
