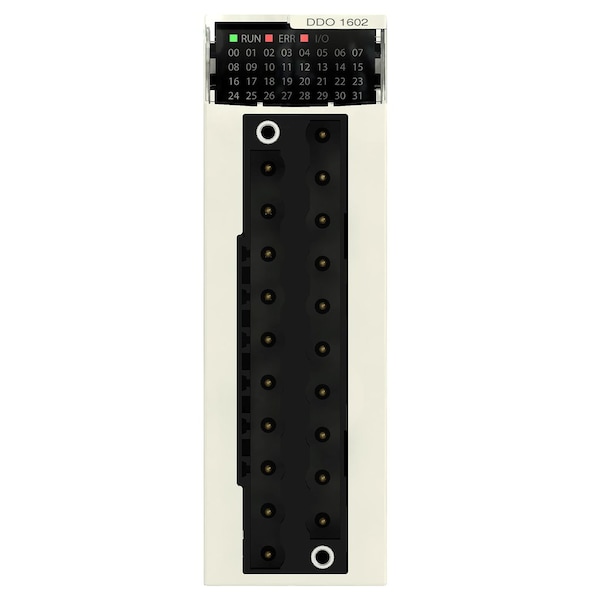

Módulo de salida discreta, Modicon X80, 16 salidas de transistor, 24V CC positivo.
| Item | Discrete output module X80 - 16 outputs |
|---|---|
| Height | 2.2 in |
| Width | 4.4 in |
| Length | 4.7" |
| Operating Altitude | 0 to 6561.68 ft (0 to 2000 m) || 2000 to 5000 m with derating factor |
| Reverse Polarity Protection | reverse mounted diode |
| Maximum Voltage Drop | <1.2 V, state 1 |
| Output Overload Protection | with electronic circuit breaker 1.5 In < Id < 2 In || with current limiter |
| Discrete Output Current | 0.5 A |
| Discrete Output Voltage | 24 V 19 to 30 V DC |
| Ambient Air Temperature For Operation | 0-60 °C |
| Discrete Output Logic | positive logic |
| Discrete Output Type | solid state |
| Voltage Detection Threshold | < 14 V DC preactuator fault || > 18 V DC preactuator at state 0 |
| Output Overvoltage Protection | with transil diode |
| Dielectric Strength | 1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic |
| Discrete Output Number | 16 EN/IEC 61131-2 |
| Mtbf Reliability | 410,000 H |
| Maximum Tungsten Load | 6 W |
| Maximum Leakage Current | 0.5 mA at state 0 |
| Load Impedance Ohmic | > 48 ohms |
| Typical Current Consumption | 79 mA 3.3 V DC |
| Ambient Air Temperature For Storage | -40-85 °C |
| Vibration Resistance | 3 gn |
| Product Or Component Type | output module |
| Shock Resistance | 30 gn |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Power Dissipation In W | 4 W |
| Paralleling Of Outputs | yes : 2 maximum |
| Output Short-Circuit Protection | with 2 A external fuse |
| Response Time On Output | 1.2 ms |
| Insulation Resistance | > 10 MOhm 500 V DC |
| Protection Type | external fuse reverse polarity protection || short-circuit protection || overload protection || overvoltage protection |
| Status Led | 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O |
| Maximum Current Per Module | 10A |
| Ip Degree Of Protection | IP20 |
| Switching Frequency | 0.5/LI² Hz |
| Current Per Channel | 0.625 A |
| Range of Product | Modicon X80 |
| Package Quantity | 1 |
