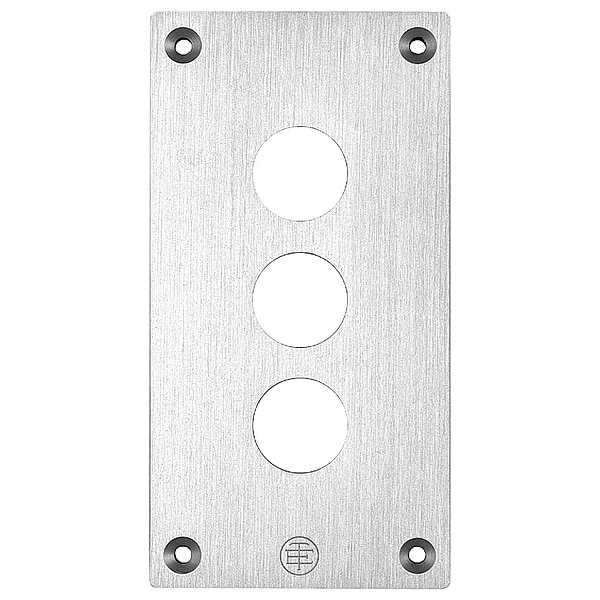

Placa frontal perforada, 22 mm de agujeros, sin leyenda.
| Item | Drilled Front Plate |
|---|---|
| For Use With | legend plates and accessories, mushroom head operators, pilot lights, selector switches, XB4 metal push buttons |
| Legend | No Legend |
| Features | (2) Cut-Out Drilled 22 mm Holes, Flush Mounting, Operating Temperatures From -40 Degrees F to 158 Degrees F |
| Color | Grey |
| Includes | (3) 22mm Openings |
| Material | anodised aluminium |
| Product Type | Cover |
| Compatible Product Type | Control Stations |
| Compatible with Series | XAP |
| Resistance Properties | Dust Resistant, Impact Resistant, Chemical Resistant, Vibration Resistant, Watertight |
| Device Mounting | flush |
| Resistance To Chemical Agents | good resistant to acetone || good resistant to alcohols || good resistant to chloride and fluoride solvents || good resistant to diluted mineral acids || good resistant to oils and petrol || good resistant to organic acids || good resistant to salts |
| Device Short Name | XAPE |
| Protective Treatment | TC || TH |
| Ip Degree Of Protection | IP65 IEC 60529 || IP657 NF C 20-010 |
| Number Of Cut-Out | 3 cut-outs |
| Product Front Plate Size | 72 mm x 138 mm |
| Product Or Component Type | front plate with fixing screws |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Destination | for Ø 22 mm control and signalling units |
| Overvoltage Category | class I IEC 60536 || class I NF C 20-030 |
| Ambient Air Temperature For Operation | -25-70°C |
| Package Quantity | 1 |
