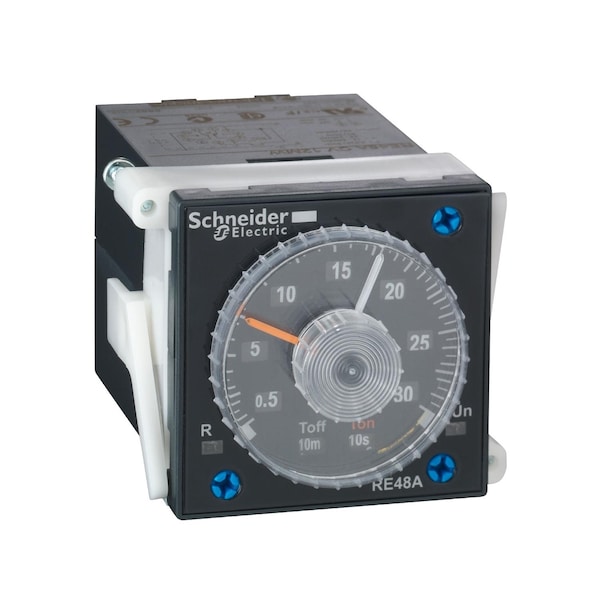

Relé de doble función, Relés temporizadores Harmony, 5A, 2NA, 0.02s...300h, intermitente asimétrico, 24...240V CA CD.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | asymmetrical flashing |
| Adjustment Method - Timer | selector switch front panel |
| Contact Form - Relay | 2 C/O timed contacts, AgNi (cadmium free) |
| Min. Time Setting - Timer | 0.2...12 min || 5...300 s || 0.02...1.2 s || 0.5...30 min || 5...300 h || 0.2...12 h || 0.2...12 s || 0.5...30 s || 2...120 s || 0.05...3 s || 2...120 min || 5...300 min || 0.5...30 h || 2...120 h |
| Power Consumption - Relay | 1.1 VA 24 V || 4.8 VA 240 V; 0.5 W 24 V || 1.7 W 240 V |
| Electrical Connection | plug-in sub-base 8 |
| Item | Timer,250VAC,5A,Re48 +options |
| Number of Functions | 2 |
| Type of Output | Relay |
| Input or Control Voltage Range | 0.85...1.1 Us AC || 0.9...1.1 Us DC |
| Hz - Electrical | 50/60Hz |
| Min. On/Off Pulse | 20 ms |
| Standards | cULus|| CSA |
| Input Voltage | 250 V AC/DC |
| Width | 48 mm |
| Voltage Drift | +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 1 %/V of the maximum setting value 24...48 V |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Support | base mounted: socket, panel mounted: system supplied with the product |
| Surge Withstand | 1 kV differential mode IEC 61000-4-5 level 3, 2 kV common mode IEC 61000-4-5 level 3 |
| Relative Humidity | 93-93 %, without condensation IEC 60068-2-3 |
| Temperature Drift | +/- 0.02 %/°C of the maximum setting value IEC 61812-1 |
| Vibration Resistance | 0.35 mm 10-55 Hz)IEC 60068-2-6 |
| Reset Time | 25 msec (on de-energisation) |
| Electrical Durability | 100000 cycles |
| Line Rated Current | 5A |
| Repeat Accuracy | +/- 0.2 % of the maximum setting value IEC 61812-1 |
| Immunity To Radioelectric Fields | 10 V 0.15...80 MHz)IEC 61000-4-6 level 3 |
| Resistance To Electromagnetic Fields | 10 V/m 26 MHz to 1 GHz IEC 61000-4-3 level 3 |
| Immunity To Voltage Dips | 30 % / 10 ms IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11, 95 % / 5 s IEC 61000-4-11 |
| Component Name | RE48A |
| Product Front Plate Size | 48 x 48 mm |
| Local Signalling | for output relay state 1 LED (yellow), for flashing: relay energised timing in progress LED indicator (green), for on steady: relay energised, no timing in progress LED indicator (green) |
| Protection Against Electric Shocks | 4 kV class III IEC 60664-1, 4 kV class III IEC 61812-1 |
| On-Load Factor | 1 |
| Power Consumption In Va | 1.1 VA 24 V, 4.8 VA 240 V |
| Marking | CE |
| Ip Degree of Protection | IP40 IEC 60529 housing), IP50 IEC 60529 front face) |
| Ambient Air Temperature For Operation | -20-50°C |
| Immunity To Microbreaks | 10 msec |
| Power Consumption In W | 0.5 W 24 V, 1.7 W 240 V |
| Pick Up Duration | 55 ms |
| Maximum Switching Current | 5 A |
| Housing Material | self-extinguishing |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| Output Voltage | 240 V 5 A AC-12, 30 V 2 A DC-13, 240 V 1.5 A AC-15 |
| Mechanical Durability | 30000000 cycles |
| Minimum Switching Current | 100 mA |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 level 4 capacitive connecting clip), 4 kV IEC 61000-4-4 level 4 direct) |
| Humidity Drift | +/- 0.05 %/%RH of the maximum setting value IEC 61812-1 |
| Disturbance Radiated/Conducted | class B 0.15...30 MHz EN 55022 (EN 55011 group 1) |
| Breaking Capacity | 1,250 VA |
| Resistance To Electrostatic Discharge | 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3 |
| Setting Accuracy of Time Delay | +/- 5 % of full scale 25°C IEC 61812-1 |
| Dielectric Strength | 1 kV 1 mA/1 minute IEC 61812-1 |
| Range of Product | Harmony Timer Relays |
| Package Quantity | 1 |
