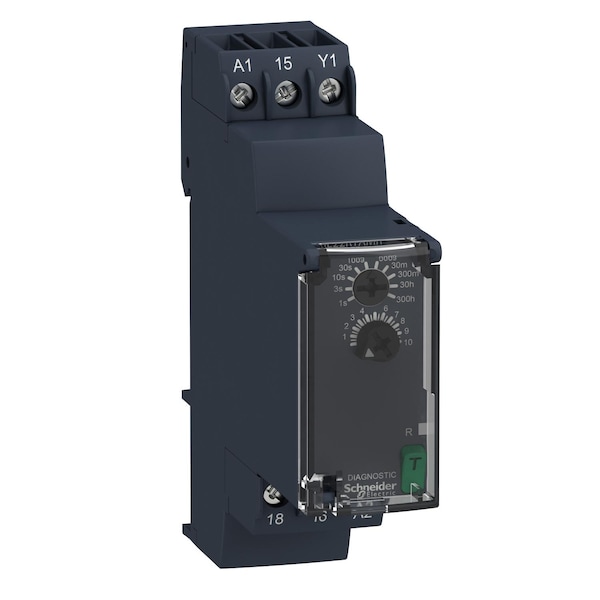

Relé de función dual, Relés temporizadores Harmony, A, 1 NA, 0.05s...300h, retardo al encender, 24...240V AC DC.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | power on-delay |
| Adjustment Method - Timer | Knob |
| Min. Time Setting - Timer | 3...30 s || 30...300 s || 10...100 s || 0.05...1 s || 1...10 s || 30...300 h || 30...300 min || 0.3...3 s || 3...30 h || 3...30 min |
| Contact Form - Relay | 1 C/O timed contact, cadmium free |
| Power Consumption - Relay | 3-3 VA 240 V AC; 1.5 W 240 V DC |
| Electrical Connection | 35 mm DIN rail conforming to EN/IEC 60715 |
| Hz - Electrical | 50/60Hz |
| Standards | UL Listed || CSA|| CE |
| Min. On/Off Pulse | 100 ms with load in parallel || 30 ms |
| Input Voltage | 250 V AC |
| Width | 22.5 mm |
| Number of Functions | 2 |
| Type of Output | Relay |
| Item | Timer,24-240VAC/VDC,In 8A,Spdt Out On |
| Input or Control Voltage Range | 0.85...1.1 Us |
| Power Consumption In Va | 3-3 VA 240 V AC |
| Voltage Drift | +/- 0.2 %/V |
| Dielectric Strength | 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1 |
| [Uimp] Rated Impulse Withstand Voltage | 5 kV 1.2-50µs IEC 60664-1 |
| Overvoltage Category | III IEC 60664-1 |
| Vibration Resistance | 20 m/s² 10-150 Hz)IEC 60068-2-6 |
| Setting Accuracy of Time Delay | +/- 10 % of full scale 25°C IEC 61812-1 |
| Mechanical Durability | 10000000 cycles |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Power Consumption In W | 1.5 W 240 V DC |
| Immunity To Microbreaks | 10 msec |
| Minimum Switching Current | 10 mA 5 V DC |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Mounting Position | any position |
| Status Led | Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED slow flashing)timing in progress and output relay energised |
| Electromagnetic Compatibility | fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 |
| Insulation Resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Maximum Switching Current | 8 A |
| Pollution Degree | 3 IEC 60664-1 |
| Electrical Durability | 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1 |
| Relative Humidity | 95-95 % 25-55°C |
| Maximum Delay Response | 100 msec |
| Reset Time | 120 msec (on de-energisation) |
| Shock Resistance | 15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27 |
| Nominal Output Current | 8 A |
| Temperature Drift | °, +/- 0.05 % C |
| Ip Degree of Protection | IP40 housing: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529 |
| Repeat Accuracy | +/- 0.5 % IEC 61812-1 |
| Creepage Distance | 4 kV/3 IEC 60664-1 |
| Device Short Name | RE22 |
| Ambient Air Temperature For Storage | -40-70°C |
| Range of Product | Harmony Timer Relays |
| Switching Capacity In Va | 2,000 VA |
| Ambient Air Temperature For Operation | -20-60°C |
| Mounting Support | 35 mm DIN rail conforming to IEC 60715 |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| Housing Material | self-extinguishing |
| Package Quantity | 1 |
