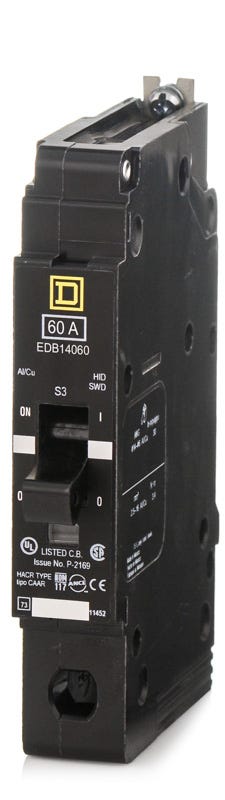

The Schneider Electric EDB14060 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 277VAC. It has an interrupting rating of 18kAIC at 120/240VAC. The EDB14060 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Schneider Electric |
|---|---|
| Series | EDB |
| Amperage | 60 |
| Voltage | 277VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Approval | IEC, cULus |
| Interrupting Rating | 18kAIC at 120/240VAC |
| Frame Type | EDB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Lugs Aluminum |
| Length (in) | 4.05 |
| Width (in) | 0.98 |
| Height (in) | 5.66 |
| Wire Gauge | AWG 14 to AWG 2/0, AWG 12 to AWG 2/0, Cu/Al |
| For Use With | NF Panelboards |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Breaker Feature | Mercury Free |
| Actuator Type | Toggle |
| Max Wire Size | 2 AWG |
| Min Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Mpn | EDB14060 |
| Upc | 785901326434 |
| Gtin | 785901326434 |
