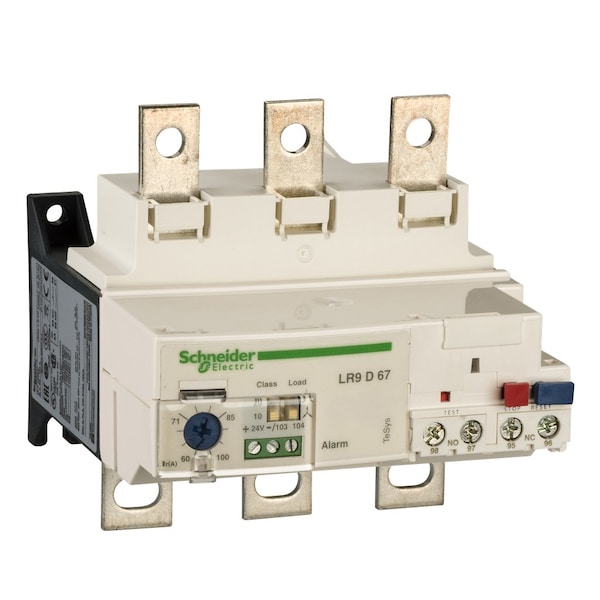

Relé térmico electrónico de sobrecarga, TeSys Deca, 90...150A, clase 10...20.
| Item | THERMAL OVERLOAD RELAY |
|---|---|
| Width | 115 mm |
| Height | 118 mm |
| Depth | 125 mm |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5 |
| Operating Altitude | <= 6561.68 ft (2000 m) without derating |
| Product or Component Type | electronic thermal overload relay |
| Pvc Free | Yes |
| [Us] Rated Supply Voltage | 24 V DC |
| [Ue] Rated Operational Voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Mechanical Robustness | vibrations2 Gn, 5...300 Hz IEC 60068-2-6, shocks13 Gn for 11 ms IEC 60068-2-7 |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Control Type | Red push-button stop, Blue push-button reset |
| Mounting Support | under contactor, rail |
| Tripping Threshold | 1.05 +/- 0.06 In alarm IEC 60947-4-1, 1.12 +/- 0.06 In de-energisation IEC 60947-4-1 |
| Maximum Voltage Drop | <2.5 V closed state |
| Climatic Withstand | IACS E10 |
| Thermal Overload Class | class 10/20 IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 90 to 150 A |
| Range | TeSys |
| Connections - Terminals | power circuit bars, control circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end, control circuit screw clamp terminals 2 0.5-1.5 mm² flexible without cable end, alarm circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end |
| [Ui] Rated Insulation Voltage | power circuit 1000 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL |
| Supply Voltage Limits | 17-32 V |
| Network Frequency | 50-60 Hz |
| Signalling Function | alarm |
| Temperature Compensation | -20-60°C |
| Switching Capacity In Ma | 0...150 mA |
| Relay Application | motor protection |
| Ambient Air Temperature For Storage | -60-70°C |
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
| [Ith] Conventional Free Air Thermal Current | 5 A (signalling circuit) |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Device Short Name | LR9D |
| Ip Degree of Protection | IP20 conforming to IEC 60529 |
| Product Name | Deca, TeSys, TeSys LRD |
| Product Compatibility | NSX circuit breaker, LC1D115, LC1D150 |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Network Type | AC |
| Tightening Torque | alarm circuit 0.45 N.m screw clamp terminals, power circuit 18 N.m bars M8, control circuit 1.2 N.m screw clamp terminals |
| Phase Failure Sensitivity | tripping in 4 s +/- 20 % IEC 60947-4-1 |
| Product Certifications | UL || CSA || CCC |
| Package Quantity | 1 |
