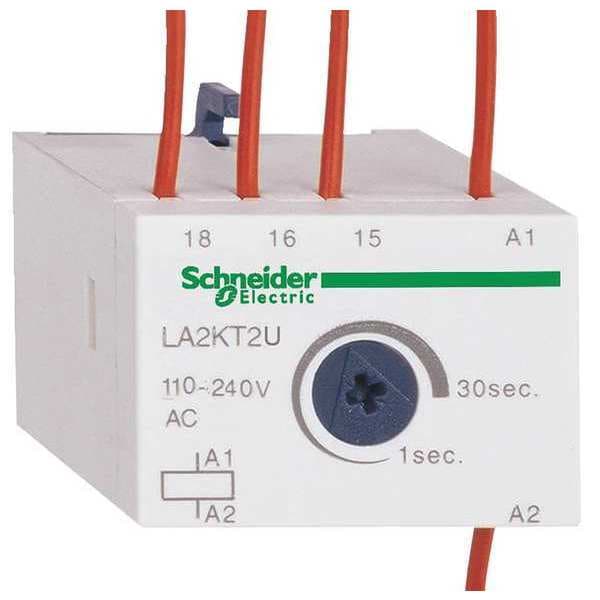

Bloque de contacto auxiliar con retardo electrónico de tiempo, TeSys K, 1C/O, con retardo de encendido de 1-30 segundos, frontal, control 110...240V CA.
| Item | Contactor Timed Contacts |
|---|---|
| Reset Time | 1.5 s during time delay || 0.5 s after time delay |
| Range Compatibility | TeSys K LC1K || TeSys K CA2K || TeSys K CA3K || TeSys K CA4K |
| Protective Treatment | TC IEC 60068 |
| Rated Operational Voltage Limits | 0.85...1.1 Uc |
| Auxiliary Contacts Operation | time delay |
| Product Certifications | UL || CSA || CE || UKCA |
| Height | 27 mm |
| [Ith] Conventional Free Air Thermal Current | 2 A (signalling circuit) |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pole Contact Composition | 1 C/O |
| Product Name | TeSys K |
| Environmental Characteristic | normal environment |
| Range | TeSys |
| [Ue] Rated Operational Voltage | 110...240 V AC control circuit || 240 V AC signalling circuit |
| Time Delay Range | 1...30 s |
| Width | 38 mm |
| Timer Type | on delay |
| Connections - Terminals | slip-on terminals |
| Mounting Location | front |
| Insulation Resistance | > 10 MOhm |
| Standards | EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 |
| Device Short Name | LA1 |
| Product Or Component Type | time delay auxiliary contact block |
| Depth | 38 mm |
| Ambient Air Temperature For Operation | -10-60°C |
| Package Quantity | 1 |
