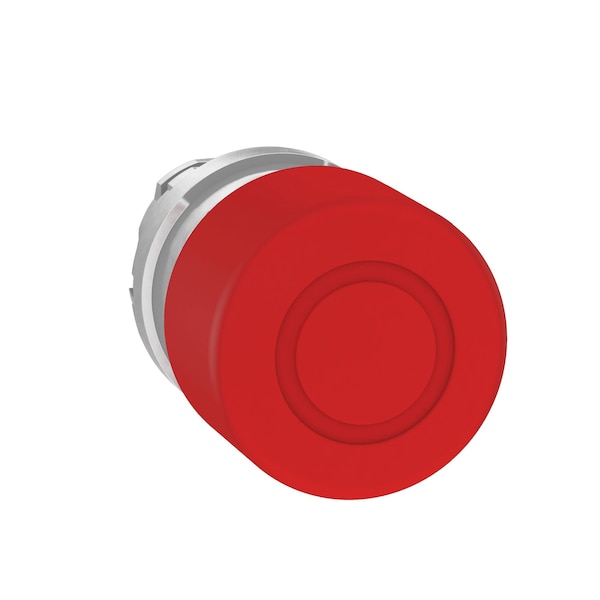

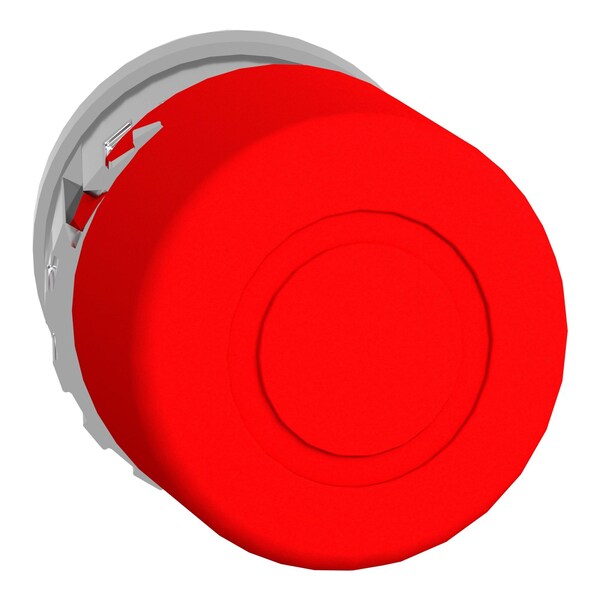

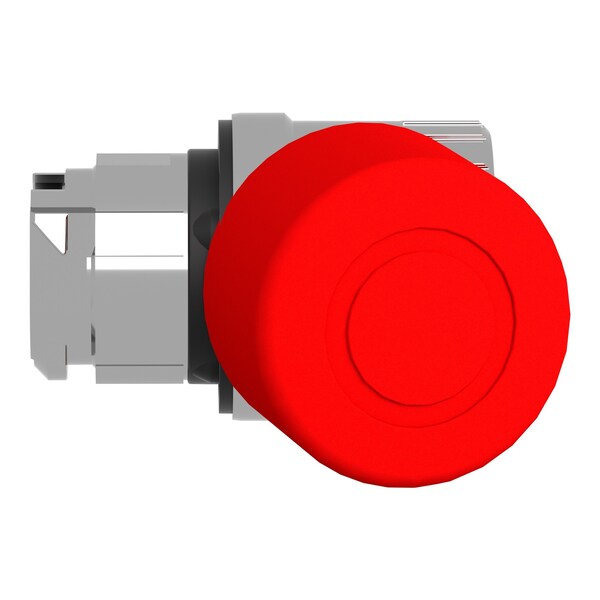

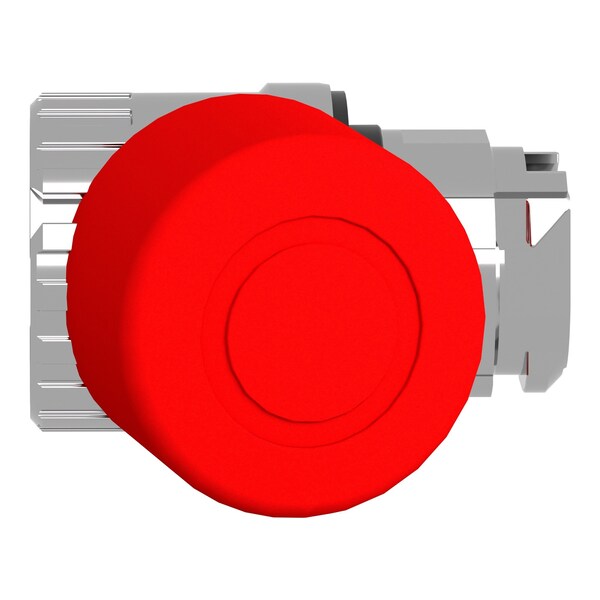

Botón de paro de emergencia, Harmony XB4, apagado, metal, champiñón rojo de 30mm, 22mm, empuje de encendido y apagado con traba de gatillo.
| Type of Operator | trigger action and mechanical latching |
|---|---|
| Item | EMERGENCY STOP HEAD RED PUSH PULL 30MM |
| Bezel Material | chromium plated metal |
| Width | 30 mm |
| Height | 30 mm |
| Standards | GB 14048.5, UL 508, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, ISO 13850, IEC 60947-5-5, IEC 60364-5-53, JIS C8201-5-1, IEC 60947-5-4, JIS C8201-1 |
| Electrical Shock Protection Class | class I IEC 61140 |
| Shape of Signaling Unit Head | round |
| Electrical Composition Code | C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, C10 4 single and double front mounting |
| Device Short Name | ZB4 |
| Device Presentation | basic element |
| Head Type | Standard |
| Reset | push-pull |
| Ambient Air Temperature For Storage | -40-70°C |
| Ik Degree of Protection | IK06 conforming to IEC 50102 |
| Ip Degree of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Nema Degree of Protection | NEMA 13, NEMA 4X, NEMA 4, NEMA 12 |
| Ambient Air Temperature For Operation | -40-70°C |
| Range of Product | Harmony XB4 |
| Mounting Diameter | 22 mm |
| Mechanical Durability | 300,000 cycle |
| Protective Treatment | TH |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product or Component Type | head for emergency switching off push-button |
| Operator Profile | red mushroom Ø 30 mm, unmarked |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Package Quantity | 1 |
