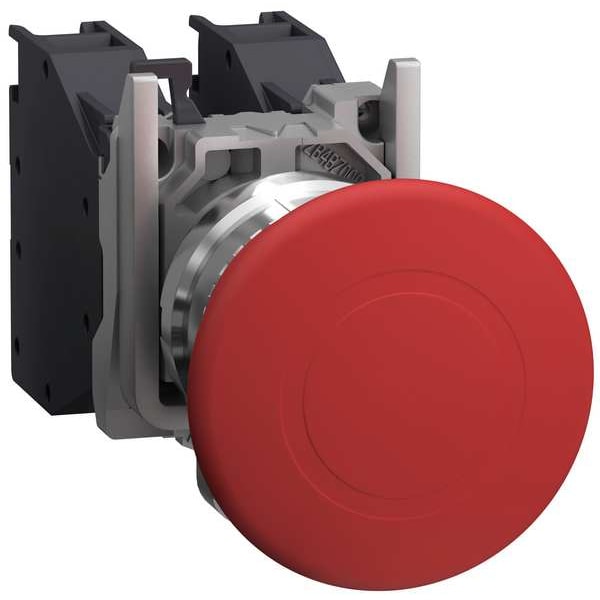

Botón de paro de emergencia, 22mm, 1 normalmente abierto/1 normalmente cerrado, rojo.
| Action | Maintained |
|---|---|
| Size | 22 mm |
| Type of Operator | 40 mm Mushroom Head |
| Contact Form | 1NO/1NC |
| Color | Red |
| Legend | Not Applicable |
| Bezel | Metal |
| Number of Operators | 1 |
| Item | Emergency Stop Push Button |
| Contact Rating | 1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC |
| Bezel Material | Chrome |
| Height | 30 mm |
| IP Rating | IP65 |
| Depth | 96.5 mm |
| Safety Rating | Class 1 Div 2, Class 2 Div 2, Class 3 |
| Standards | ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31 |
| Width | 46.2 mm |
| Terminal Connection | Screw Clamp |
| Head Color | Red |
| Panel Cutout Diameter | 22 mm |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Product Type | Push Button |
| Push Button Style | Mushroom Head |
| Mechanical Durability | 5,000,000 cycle |
| Product Or Component Type | push-button, complete push button |
| Mounting Diameter | 22 mm |
| Contacts Usage | standard |
| Fixing Collar Material | zamak |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| [Ui] Rated Insulation Voltage | 415 V |
| Ambient Air Temperature For Storage | -40-70°C |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Dust Zone | zone 21 - 22 |
| Device Short Name | XB4 |
| Operator Profile | red mushroom Ø 40 mm |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Contacts Type And Composition | 1 NO + 1 NC |
| Embedding Depth | 58 mm |
| Protective Treatment | TH |
| Fixing Center | >= 30 x 40 mm support panel) 1-6 mm |
| Ambient Air Temperature For Operation | -20-65°C |
| Gas Zone | zone 1 - 2 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Connections - Terminals | screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Product Certifications | INERIS 04ATEX9004U |
| Reset | push-pull |
| Contact Operation | slow-break |
| Shape Of Signaling Unit Head | round |
| [Ie] Rated Operational Current | 1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1 |
| Device Mounting | fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1 |
| Marking | II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb |
| Package Quantity | 1 |
