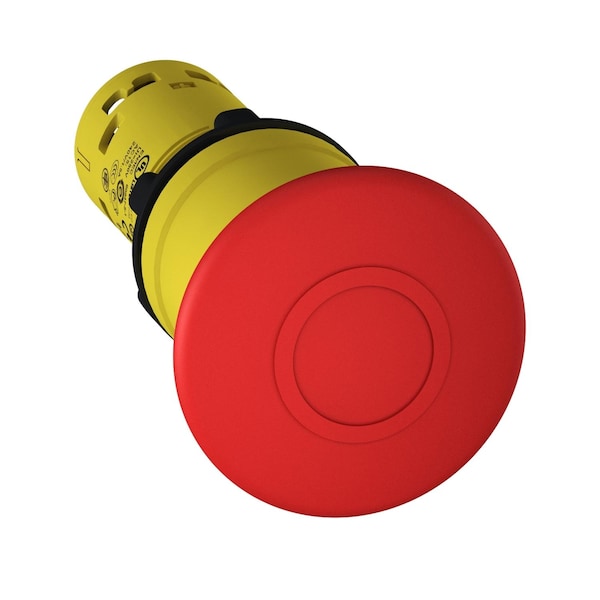

Botón de paro de emergencia, Harmony XB7, 22mm, rojo con forma de hongo de 40mm, activación por tirón para liberar, 1NC.
| Type of Operator | latching |
|---|---|
| Item | Estop Pushpull 1NC |
| Standards | UL 508, IEC 60947-1, IEC 60947-5-5, CSA C22.2 No 14, IEC 60204-1, ISO 13850, IEC 60947-5-1, IEC 60364-5-53 |
| Height | 40 mm |
| Width | 40 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Ip Degree of Protection | IP20 IEC 60529 rear face) || IP65 IEC 60529 front face) |
| Product or Component Type | push-button |
| Terminals Description Iso N°1 | NC |
| Reset | push-pull |
| Shape of Signaling Unit Head | round |
| Electrical Reliability | λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4 |
| Ambient Air Temperature For Operation | -25-70°C |
| Contacts Type And Composition | 1 NC |
| Shape of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1 |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Contact Operation | snap action |
| Protective Treatment | TH |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm |
| [Ie] Rated Operational Current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1, 0.75 A 240 V, AC-15, C300 IEC 60947-5-1, 1.5 A 120 V, AC-15, C300 IEC 60947-5-1 |
| Electrical Shock Protection Class | class II IEC 60536 |
| Mounting Diameter | 22 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Short-Circuit Protection | 4 A cartridge fuse gG IEC 60947-5-1 |
| Mechanical Durability | 100,000 cycle |
| Electrical Durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contacts Usage | standard |
| Device Presentation | product |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Device Short Name | XB7 |
| Shock Resistance | 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Range of Product | Harmony XB7 |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Nema Degree of Protection | NEMA 12 UL 50 || NEMA 3 UL 50 |
| Product Certifications | CCC || GOST |
| Cad Overall Height | 40 mm |
| Cad Overall Depth | 72 mm |
| Cad Overall Width | 40 mm |
| Package Quantity | 10 |
