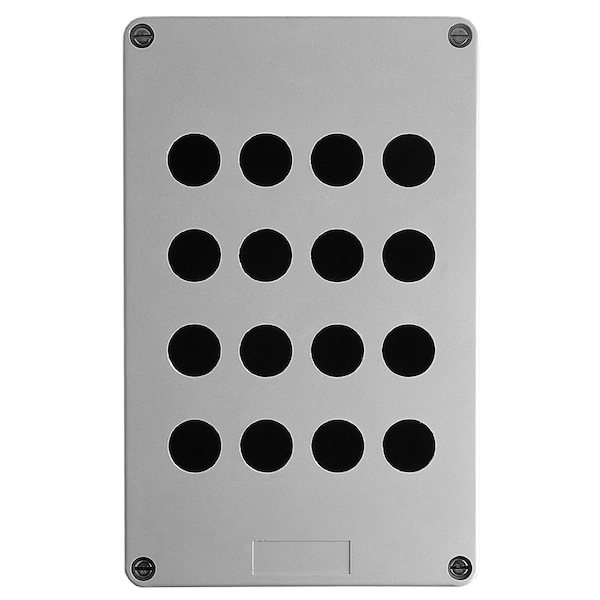

Estación de control vacía sin bisagras, Harmony XAP, plástico, gris, 16 recortes, 22mm, 151 x 241 x 83mm.
| Item | Empty control station - XAP-A - plastic |
|---|---|
| Basic Material | glass reinforced polyester |
| Housing Color | Grey |
| Material | glass reinforced polyester |
| Mounting | Flush |
| Cable Entry | undrilled |
| Depth | 83 mm |
| IP Rating | IP65 IEC 60529 || IP69 NF C 20-010 || IP69K |
| Ambient Air Temperature For Storage | -40-70°C |
| Ambient Air Temperature For Operation | -40-70°C |
| Colour of Base of Enclosure | grey |
| Flame Retardance | M3 conforming to CSTB, VO conforming to UL 94 |
| Number of Vertical Rows | 4 |
| Usable Depth | 83 mm |
| Product or Component Type | control station |
| Resistance To Chemical Agents | high resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water |
| Device Short Name | XAPA |
| Ip Degree of Protection | IP65 IEC 60529, IP69 NF C 20-010, IP69K |
| Colour of Cover | grey |
| Product Front Plate Size | 151 mm x 241 mm |
| Fire Resistance | 850°C NF C 20-455, 960°C IEC 92 |
| Product Destination | for Ø 22 mm control and signalling units |
| Overvoltage Category | class II IEC 60536, class II NF C 20-030 |
| Range of Product | Harmony XAP |
| Number of Cut-Out | 16 cut-outs |
| Protective Treatment | TH, TC |
| Device Mounting | flush |
| Package Quantity | 1 |
