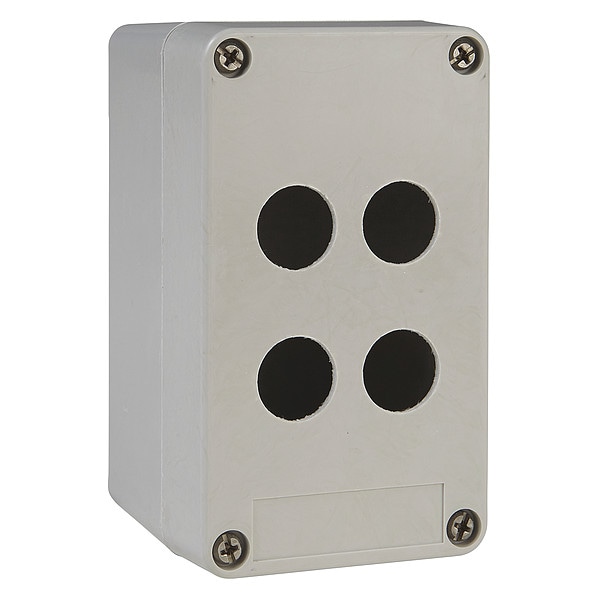

Estación de control vacía sin bisagras, Harmony XAP, XB2 SL, plástico, gris, 4 recortes, 22mm.
| Item | Pushbutton Enclosure 22Mm Xap +Options |
|---|---|
| Material | glass reinforced polyester |
| Cable Entry | undrilled |
| Colour of Cover | grey |
| Product Front Plate Size | 85 mm x 146 mm |
| Ip Degree of Protection | IP65 IEC 60529 || IP69 NF C 20-010 || IP69K |
| Resistance To Chemical Agents | high resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water |
| Protective Treatment | TH, TC |
| Device Short Name | XAPA |
| Colour of Base of Enclosure | grey |
| Number of Cut-Out | 4 cut-outs |
| Fire Resistance | 850°C NF C 20-455, 960°C IEC 92 |
| Usable Depth | 83 mm |
| Number of Vertical Rows | 2 |
| Product or Component Type | control station, empty station |
| Range of Product | Harmony XAP |
| Device Mounting | flush |
| Overvoltage Category | class II IEC 60536, class II NF C 20-030 |
| Ambient Air Temperature For Operation | -40-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Destination | for Ø 22 mm control and signalling units |
| Flame Retardance | M3 conforming to CSTB, VO conforming to UL 94 |
| Package Quantity | 1 |
