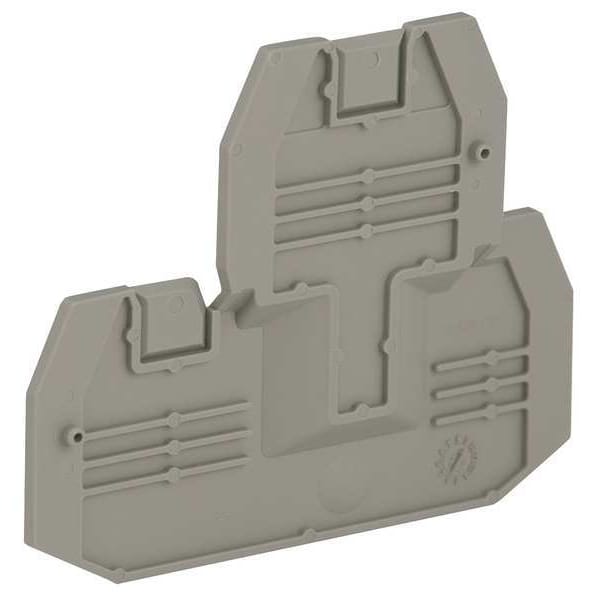

Barrera terminal, terminal de tornillo
| Item | Terminal Block End Plate |
|---|---|
| For Use With | Mfr. No. NSYTRV24D |
| Length | 2-3/4 in |
| Height | 2.26 in |
| Material | Plastic |
| Color | Gray |
| Standards | REACH |
| Width | 0.09 in |
| Length (Straight Wireway) | 2.75 in |
| Overall Length | 2-3/4 in |
| Compatible Manufacturer Model Number | NSYTRV24D |
| Compatible with Product Type | Screw Terminal Terminal Block |
| Thickness | 0.0866 in |
| RoHS Compliant | No |
| Overall Depth | 0.16 in |
| Compatible with Series | NSYTRV |
| Overall Width | 2.28 in |
| Number Of Terminals | 2 |
| Cable Cross Section | 2.5-2.5 mm² || 4-4 mm² |
| Product Name | Linergy TR |
| Product Or Component Type | cover plate |
| Range | Linergy |
| Device Short Name | TRA |
| Accessory / Separate Part Category | insulation accessory |
| Number Of Measurement Input | 4 || 2 |
| Product Compatibility | TRV screw terminal terminal block, length = 69.9 mm |
| Package Quantity | 1 |
