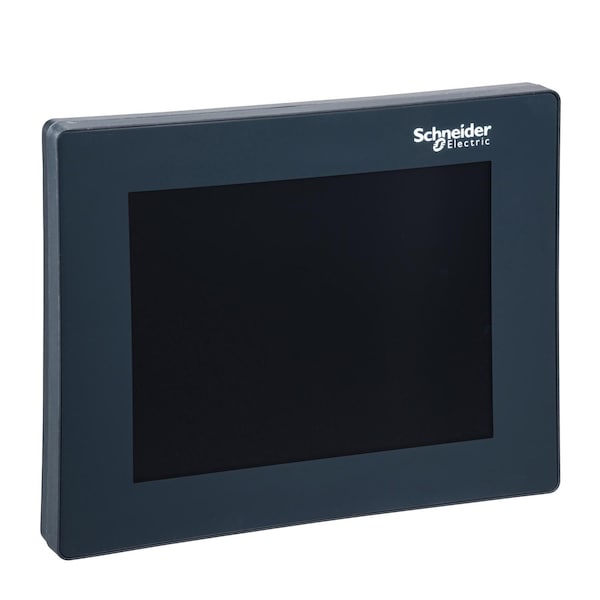

Panel de visualización del conmutador Ethernet FDM128, hasta 8 dispositivos conectados, pantalla de 115.2 x 86.4 mm, IP65 en la cara frontal.
| Item | Front display module FDM 128-163.129 m |
|---|---|
| Display Type | colour TFT LCD |
| Height | 129 mm |
| Width | 163 mm |
| Depth | 56.5 mm |
| Standards | CE, CSA, UL |
| Range Compatibility | MasterPact MTZ, MasterPact NW, MasterPact NT, Compact NSX, ComPact ComPact NS630b...1600, ComPact ComPact NS1600b...3200, PowerPact PowerPact H, PowerPact PowerPact J, PowerPact PowerPact L, PowerPact PowerPact P, PowerPact PowerPact R, Acti 9 Acti9 Smartlink smart communication module |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| Function of Module | remote control || view network || metering || display alarm |
| Power Consumption In W | 6.8 W |
| Mounting Mode | flush mounting |
| Ip Degree of Protection | IP54 || front face IP65 |
| Product or Component Type | display module |
| Ambient Air Temperature For Operation | -10-55°C |
| Mounting Support | surface mount with kit |
| Pvc Free | Yes |
| View Angle Horizontal X Vertical | 70 x 80° |
| Control Type | Remote Control |
| Product Name | Enerlin'X FDM |
| Display Resolution | 320 pixels x 240 pixels QVGA |
| Device Short Name | FDM128 |
| Accessory / Separate Part Category | spare part ComPact NS630b...1600 || spare part ComPact NS1600b...3200, display and signalling accessory |
| Package Quantity | 1 |
