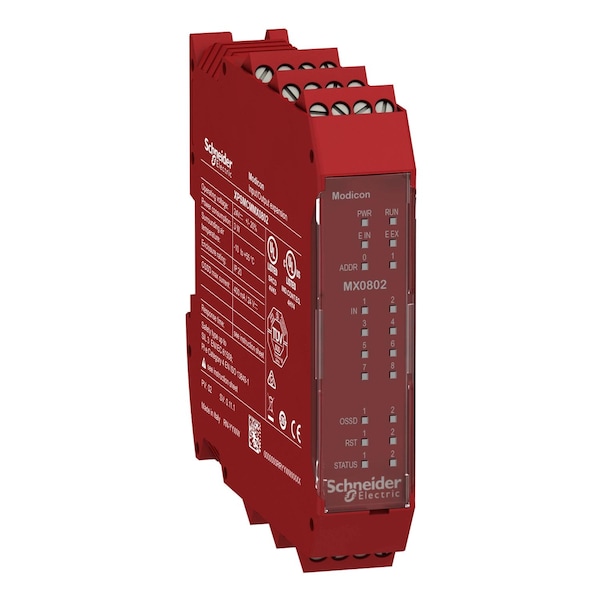

Módulo de expansión, Modicon MCM, 8 entradas 2 pares de salidas, tornillo.
| Width | 114.5 mm |
|---|---|
| Depth | 22.5 mm |
| Electrical Connection | Screw Terminal |
| Standards | EN/IEC 61800-5-1 || EN/IEC 61508 || EN/ISO 13849-1 || IEC 62061 |
| Item | Pairs Output Module Inputs Expansion 8 2 |
| Height | 99 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 61800-5-1 |
| Product Certifications | cULus || TUV || RCM |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Number Of Terminal Blocks | 6 |
| Device Short Name | XPSMCM |
| Connections - Terminals | 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block |
| Integrated Connection Type | backplane expansion bus |
| Discrete Output Current | 400 mA || 100 mA |
| Safety Level | can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061 |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Power Consumption In W | 3 W |
| Power Dissipation In W | 3 W |
| Discrete Input Type | isolated |
| Vibration Resistance | +/-0.35 mm 10-55 Hz)EN/IEC 61496-1 |
| Discrete Output Type | PNP |
| Ambient Air Temperature For Operation | -10-55°C |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
| Overvoltage Category | II |
| Ip Degree Of Protection | IP20 enclosure |
| Relative Humidity | 10-95 % |
| Quality Labels | CE |
| Output Load | 60 Ohm |
| Pollution Degree | 2 |
| Function Of Module | monitoring safety detection discrete input || monitoring safety dialogue discrete input || monitoring safety actuators discrete output |
| Number Of Outputs | 4 test line control || 2 safety outputs OSSD contactor/drive connection || 2 configurable diagnostic connection |
| Number Of Inputs | 8 digital || 2 digital external device monitoring |
| Discrete Input Voltage | 24 V DC |
| Ambient Air Temperature For Storage | -20-85°C |
| Electromagnetic Compatibility | electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3 |
| Discrete Output Voltage | 24 V DC |
| Load Type | resistive load |
| Product Or Component Type | safe mixed I/O expansion module |
| Cable Cross Section | 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1 |
| Local Signalling | 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status || 2 LEDs green/red OUT output status || 2 LEDs yellow RST restart signal || 2 LEDs yellow STATUS output status |
| Pvc Free | Yes |
| Service Life | 20 year(s) |
| Range of Product | automation |
| Package Quantity | 1 |
