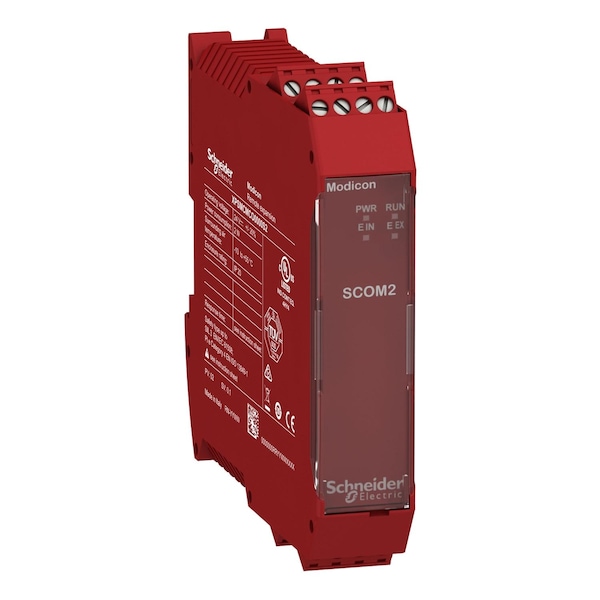

Expansion module, Modicon MCM, RS485 safe communication, 2 way, screw
| Item | RS485 Safe communications expansion modu |
|---|---|
| Connector Type | 4 ways RS485 |
| Standards | cULus, RCM, TÃœV |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Range of Product | Modicon MCM |
| Ambient Air Temperature For Storage | -20-85°C |
| Pollution Degree | 2 |
| Maximum Cable Distance Between Devices | 50 m |
| Current Consumption | 0.125 mA |
| Communication Port Protocol | RS485 |
| Number of Port | 2 |
| Range Compatibility | Preventa XPSMCM |
| Relative Humidity | 10-95 % |
| Product or Component Type | safe communication expansion module |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Cable Cross Section | 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end |
| Service Life | 20 year(s) |
| Connections - Terminals | 4 |
| Overvoltage Category | II |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Quality Labels | CE |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Safety Level | can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, can reach SILCL 3 IEC 62061 |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Operating Altitude | 6561.68 ft (2000 m) |
| Power Dissipation In W | 3 W |
| Local Signalling | LED green PWR power ON, LED green RUN operating, LED red E IN internal error, LED red E EX external error |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Ip Degree of Protection | IP20 |
| Vibration Resistance | +/-0.35 mm 10-55 Hz)IEC 61496-1 |
| Ambient Air Temperature For Operation | -10-55°C |
| Pvc Free | Yes |
| Device Short Name | XPSMCM |
| Product Certifications | cULus || RCM || TÅ“V |
| Package Quantity | 1 |
