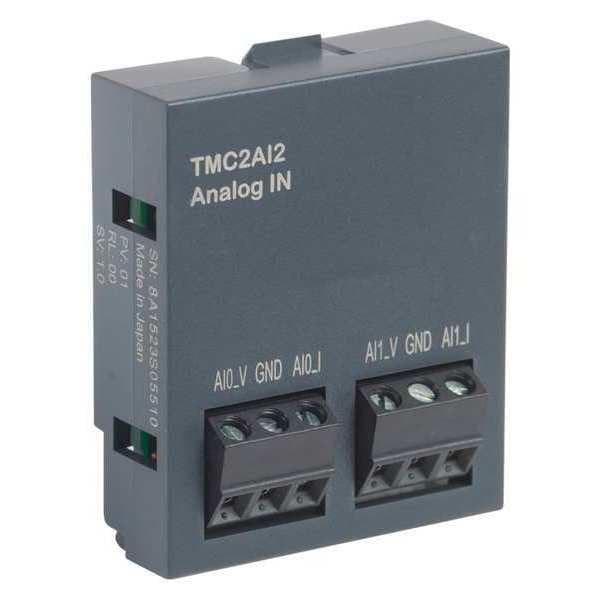

Cartucho de extensión, 2 entradas, 0-10VDC.
| Item | Extension Module |
|---|---|
| Power Required | 0 to 10V DC |
| Number of Inputs | 2 |
| Number of Outputs | 0 |
| For Use With | Modicon Mfr. No.M221 PLC |
| Features | 2 Screw Terminal Blocks and Twisted shielded pairs cable |
| Width | 35 mm |
| Height | 41 mm |
| Depth | 15 mm |
| Absolute Accuracy Error | +/- 0.1 % of full scale at 25°C || +/- 1 % of full scale |
| Cross Talk | <= 1 LSB |
| Product Or Component Type | analogue input cartridge |
| Type Of Cable | twisted shielded pairs cable |
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m input |
| Analogue Input Number | 2 |
| Immunity To Microbreaks | 10 msec |
| Repeat Accuracy | +/- 0.5 %FS |
| Conversion Time | 20 ms |
| Analogue Input Resolution | 12 bits |
| Product Compatibility | Modicon M221C |
| Insulation | non-insulated between analogue input and internal logic |
| Input Impedance | <= 250 Ohm current || >= 1 MOhm voltage |
| Non-Linearity | +/- 0.01 %FS |
| Permissible Continuous Overload | 13 V voltage || 40 mA current |
| Analogue Input Type | current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V |
| Lsb Value | 2.44 mV 0 to 10 V voltage || 4.88µA 0 to 20 mA current || 3.91µA 4 to 20 mA current |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs |
| Sampling Duration | 10 msec |
| Temperature Drift | +/- 0.02 %FS/°C |
| Package Quantity | 1 |
