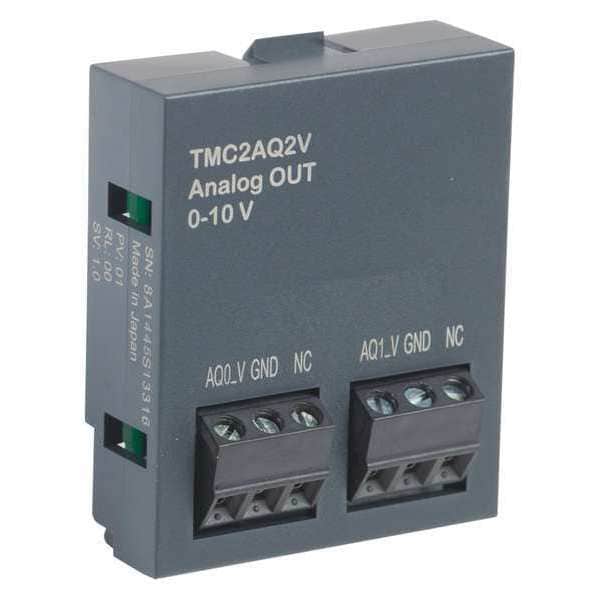

Cartucho de extensión, 2 salidas, 0-10 VCC
| Item | Extension Module |
|---|---|
| Power Required | 0 to 10V DC |
| Number of Inputs | 0 |
| Number of Outputs | 2 |
| For Use With | Modicon Mfr. No.M221 PLC |
| Features | 2 Analog Voltage Outputs, I/O Extension Cartridge |
| Height | 41 mm |
| Width | 35 mm |
| Depth | 15 mm |
| Load Impedance Ohmic | >= 2 kOhm |
| Conversion Time | 20 ms |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for outputs |
| Stabilisation Time | 40 msec |
| Lsb Value | 2.44 mV 0 to 10 V voltage |
| Immunity To Microbreaks | 10 msec |
| Repeat Accuracy | +/- 0.4 %FS |
| Analogue Output Type | voltage 0 to 10 V |
| Product Or Component Type | analogue output cartridge |
| Load Type | resistive |
| Absolute Accuracy Error | +/- 1 % of full scale || +/- 0.3 % of full scale at 25°C |
| Insulation | non-insulated between analogue output and internal logic |
| Product Compatibility | Modicon M221C |
| Non-Linearity | +/- 0.01 %FS |
| Temperature Drift | +/- 0.02 %FS/°C |
| Cross Talk | <= 1 LSB |
| Type Of Cable | twisted shielded pairs cable |
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m output |
| Analogue Output Resolution | 12 bits |
| Analogue Output Number | 2 |
| Package Quantity | 1 |
