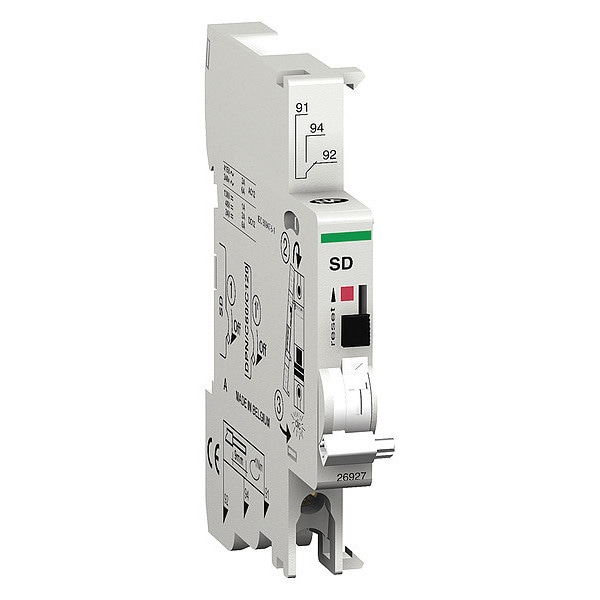

Contacto de falla, de 240 a 415V CA/24 a 130V CC, 6 A, 0 Polos.
| Item | Fault Contact |
|---|---|
| Voltage | 240 to 415V AC/24 to 130V DC |
| Number of Poles | 0 |
| For Use With | Multi 9 Circuit Breakers |
| Width | 9 mm |
| Amps | 6 |
| Standards | CCC, CSA Certified, EN 62019-2, EN/IEC 60947-5-1, PCT, UL Listed, UR |
| Height | 85 mm |
| Connections - Terminals | clamp terminal bottom) 1 2.5-2.5 mm2² AWG 14) - rigid || clamp terminal bottom) 2 1.5-1.5 mm2² AWG 16) - rigid |
| [Uc] Control Circuit Voltage | 240...415 V AC 50/60 Hz || 24...130 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| 9 Mm Pitches | 1 |
| Tightening Torque | 1-1 N.m bottom |
| Range | Multi9 |
| [Ui] Rated Insulation Voltage | 500 V |
| Product Certifications | CSA || PCT || UL || UR || CCC |
| Depth | 73.5 mm |
| Mounting Support | rail |
| Ambient Air Temperature For Storage | -40-85 2°C |
| Signal Contacts Composition | 1 C/O |
| Wire Stripping Length | 9 mm bottom |
| Device Short Name | SD |
| Ambient Air Temperature For Operation | -25-50 2°C |
| Mounting Mode | fixed |
| Comb Busbar And Distribution Block Compatibility | top YES |
| Product Or Component Type | contact |
| Line Rated Current | 3-3 A at 415 V, AC 50/60 Hz || 6-6 A at <= 240 V, AC 50/60 Hz || 6-6 A at 24 V, DC || 2-2 A at 48 V, DC || 1.5-1.5 A at 60 V, DC || 1-1 A at 130 V, DC |
| Package Quantity | 1 |
