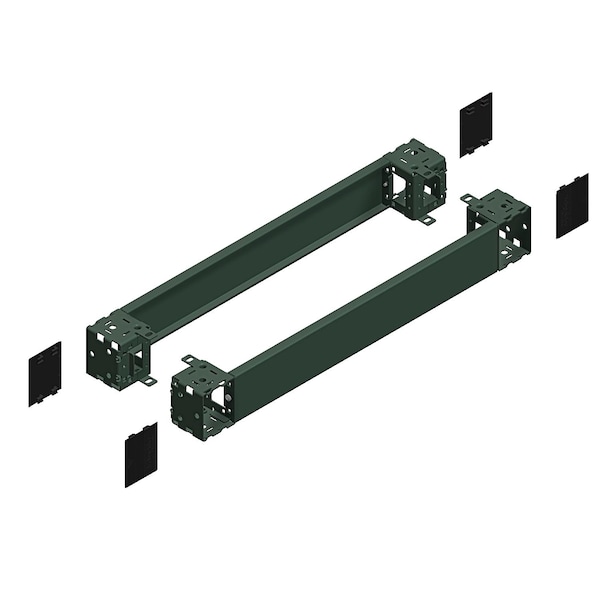

Zócalo delantero y trasero, PanelSeT SFN, Spacial SF, Spacial SM, para caja eléctrica de ancho 600mm, zócalo de altura 100mm.
| Item | Spacial SF/SM front plinth - 100x600 mm |
|---|---|
| Color | Gray RAL 7022 |
| Height | 3.9 in |
| Width | 23.6 in |
| Device Application | PC application || electronic application || multi-purpose || compartmentalised application |
| Accessory / Separate Part Category | accessories |
| Permanent Permissible Load | 1300 kg |
| Range Compatibility | Spacial (Spacial SF) || Spacial (Spacial SM) || Spacial (Spacial SD) || Spacial (Spacial S3D) || Spacial (Spacial CRN) |
| Surface finish | epoxy-polyester powder |
| Fixing Mode | by fixing element - on structure |
| Product Or Component Type | plinth front |
| Device Composition | fixing elements || 4 corner cover || 1 front panel || 1 rear panel || 4 corner |
| Range | Spacial |
| Ik Degree Of Protection | IK10 |
| Mounting Support | plinth side panels |
| Ip Degree Of Protection | IP30 complete plinth) |
| Product Name | Spacial SF/SM Front Plinth |
| Product Color | Umbra Gray |
| Device Supported | Rack |
| Product Type | Front Panel |
| Compatibility | Spacial SF, Spacial SM, Spacial SD, Spacial S3D, Spacial CRN |
| Package Quantity | 1 |
