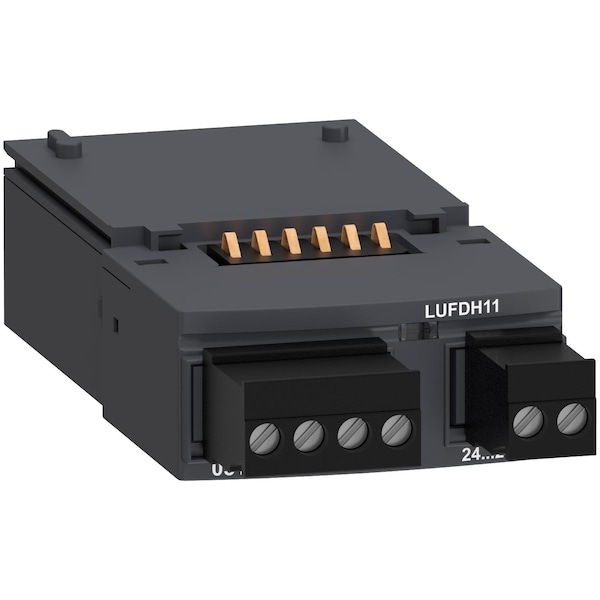

Módulo de función, señalización de sobrecarga térmica, TeSys Ultra, 1 NC + 1NA.
| Item | Aux Function Module Manual Reset |
|---|---|
| Current Consumption | 7 mA 24 V DC || 1.1 mA 240 V AC |
| Product Or Component Type | function module |
| Mounting Mode | plug-in |
| Short-Circuit Protection | 2 A fuse gG IEC 60947-5-1 |
| Mounting Location | front side |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| [Ith] Conventional Free Air Thermal Current | 2 A 70°C |
| Device Short Name | LUF |
| Connections - Terminals | screw clamp terminals 2 0.2-1 mm² rigid without cable end || screw clamp terminals 2 0.25-1 mm² flexible with cable end || screw clamp terminals 2 0.5-1 mm² flexible with cable end |
| Product Compatibility | LUCC || LUCB || LUCD |
| Connection Pitch | 5.08 mm |
| Input Type | remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF |
| Function Available | thermal overload signalling and manual reset |
| Discrete Output Function | 1 NO + 1 NC AC-15) 230 V 400 VA 100000 cycles || 1 NO + 1 NC DC-13) 24 V 50 W 100000 cycles |
| Range | TeSys |
| Communication Of Faults | LED front panel |
| [Us] Rated Supply Voltage | 24 to 240 V DC || 24 to 240 V AC |
| Tightening Torque | 0.5-0.6 N.m 3.5 mm flat |
| Conventional Free Air Thermal Current | 2 A 158°F (70°C) |
| Rated Supply Voltage | 24 to 240 V DC; 24 to 240 V AC |
| Package Quantity | 1 |
