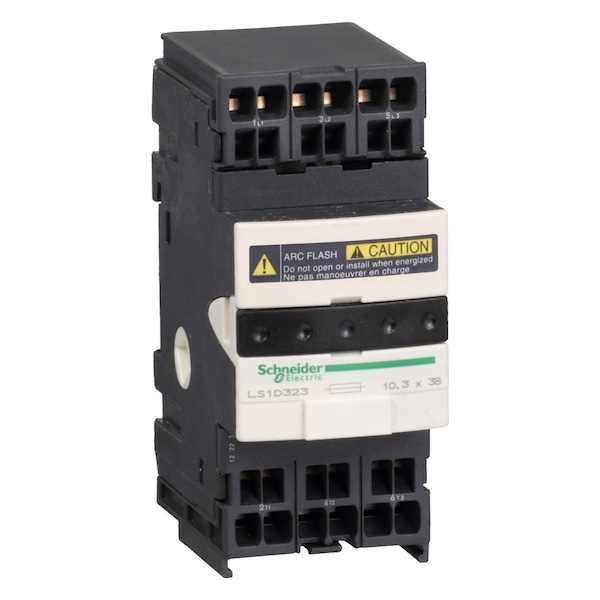

Disyuntor fusible, TeSys DF, 3P, 600V, 25A, tamaño del fusible 10x38mm, tipo de resorte
| Item | Fuseholder 32A Spring Terminal Tesys |
|---|---|
| Standards | IEC 60947-2; IEC 60947-4-1; IEC 60947-1 |
| Height | 3-1/2 in |
| Width | 1.77 in |
| Depth | 2.69 in |
| Protective Treatment | TH |
| IP Degree Of Protection | IP20 |
| Rated Operational Current | 25 A power circuit |
| Fuse Type | AM, GG |
| Product Or Component Type | Fuse-disconnector |
| Fuse Size | 10 x 38 mm |
| Connections - Terminals | spring terminals 2 0.00 to 0.01 in² (1 to 6 mm²)solid; spring terminals 2 0.00 to 0.01 in² (1 to 6 mm²)flexible without cable end; spring terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end |
| Local Signalling | Blown fuse indication |
| Mounting Support | Rail |
| Product Name | TeSys LS1 |
| Associated Fuse Rating | 30 A aM; 30 A gG |
| Rated Operational Voltage | 600 V |
| Ambient Air Temperature For Operation | -58 to 158°F operation |
| Mounting Position | Vertical +/- 23° |
| Poles Description | 3P |
| Control Type | Toggle |
| Product Certifications | BV, UR |
| [Ue] Rated Operational Voltage | 600 V |
| Device Short Name | LS1D |
| [Ie] Rated Operational Current | 25 Apower circuit |
| Range | TeSys |
| Package Quantity | 1 |
