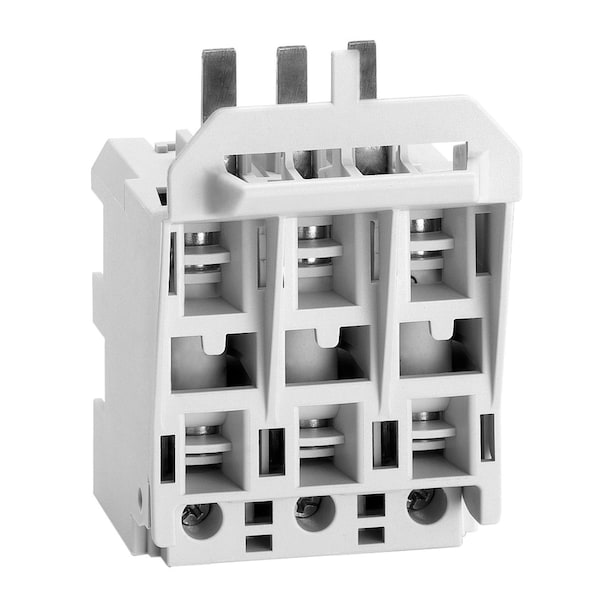

Fuse Holder, 3 Poles, 0 to 25A Amp Range, 690V AC Volt Rating
| Item | Fuse Holder |
|---|---|
| Number of Poles | 3 |
| Amp Range | 0 to 25A |
| Voltage Rating | 690V AC |
| Mounting Style | DIN-Rail |
| Width | 52.5 mm |
| Height | 75.2 mm |
| Amps | 25 |
| Standards | UL 508 || CSA C22.2 No 14 || IEC 60947-3; cULus || GL |
| Features | Mercury Free; power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible without cable end |
| Fuse UL Class | CC |
| Weight | 0.135 kg |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Voltage | 690 V AC |
| For Fuse Class | CC |
| Max. Amps | 25 |
| Package Quantity | 1 |
