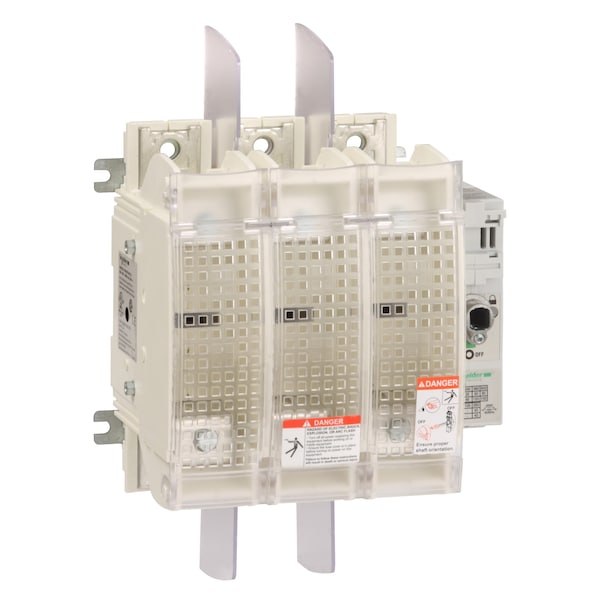

Interruptor de desconexión de fusible, 600 V
| Item | Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Amps | 200 |
| Voltage | 600 V |
| Number of Poles | 3 |
| Fusible / Nonfusible | Fusible |
| Width | 196.2 mm |
| Fuse Type | UL |
| Height | 195 mm |
| Depth | 130 mm |
| Standards | UL98 || CSA C22.2 No 4 |
| Electrical Durability | 6000 cycles |
| Connections - Terminals | power circuit lugs-ring terminals 16-152 mm² |
| Poles Description | 3P |
| Device Application | protection |
| [Ie] Rated Operational Current | 200 A |
| Ambient Air Temperature For Storage | -40-80°C |
| Range | TeSys |
| [Icm] Rated Short-Circuit Making Capacity | 2 kA 400 V |
| Fuse Size | J |
| Protected Poles Description | 3t |
| Network Type | DC || AC |
| Fire Resistance | 960°C body |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Ambient Air Temperature For Operation | -20-70°C |
| Mounting Support | plate |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| [Ui] Rated Insulation Voltage | 750 V |
| Breaking Capacity | 1600 A 400 V |
| Mechanical Durability | 10,000 cycle |
| Device Short Name | GS2MU |
| Type Of Operating Handle | external frontal |
| Short-Circuit Withstand | 32 kA |
| Tightening Torque | power circuit 8.5-8.5 N.m |
| Network Frequency | 50/60 Hz |
| [Ith] Conventional Free Air Thermal Current | 200 A 40°C |
| Product Or Component Type | switch-disconnector-fuse |
| Rated Operational Power In W | 100 kW 400 V || 140 kW 500 V || 185 kW 690 V |
| Product Name | TeSys GS |
| Contacts Type And Composition | 3 NO |
| Conventional Free Air Thermal Current | 200 A (at 104°F (40°C)) |
| Package Quantity | 1 |
