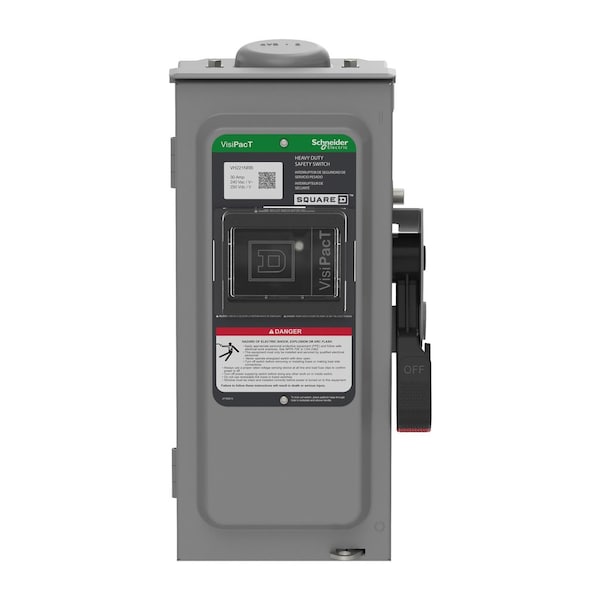

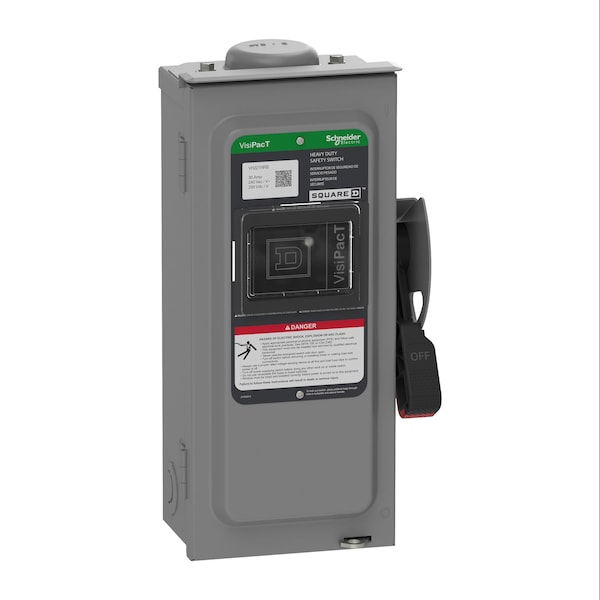

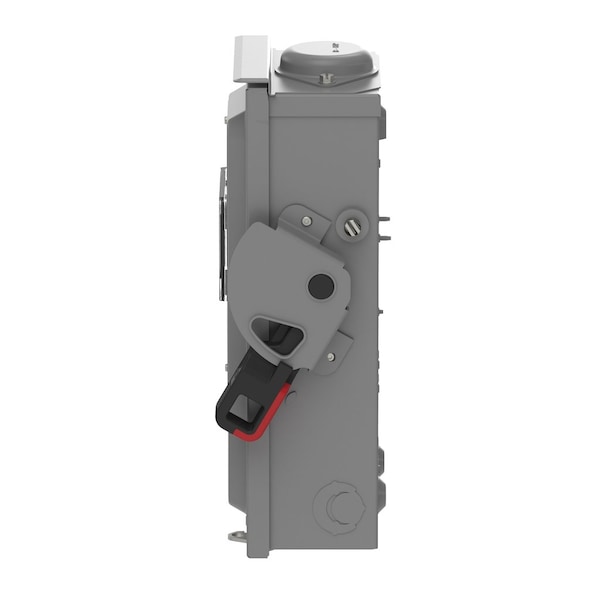

Interruptor de seguridad con fusible, 240V CA, 2 polos.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Voltage | 240 V AC |
| Number of Poles | 2 |
| Phase | Single |
| Contact Form | DPST |
| IP Rating | IP14 |
| Duty | Heavy Duty |
| Number of Wires | 3 |
| Neutral Assembly Included | Yes |
| Depth | 5 in |
| Height | 14-3/4 in |
| Standards | EU RoHS, UL listed file E2875 |
| Includes | Dual Cover Interlock |
| Width | 6-1/2 in |
| Includes Interlocked Receptacle | Yes |
| Horsepower @ 240V AC | 3 HP |
| Number of Locks | 2 |
| Maximum Enclosure Depth | 5.11 in |
| Enclosure Type | Enclosed |
| For Fuse Class | Class H, Class K |
| Series | F |
| Mounting Style | Surface Mount |
| Fuse Kit (Class R) | Mfr. No. RFK03L |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Number of Mounting Holes | 3 |
| Current Rating | 30 A |
| Housing Material | Galvannealed Steel |
| NEMA Enclosure Rating | 3 R |
| Compatible with Manufacturer Model Number | RFK03L |
| Horsepower @ 600V AC | Not Rated |
| Environment | Indoor, Outdoor |
| Horsepower @ 480V AC | Not Rated |
| Compatible with Manufacturer Model Number [NEW] | RFK03L |
| Handle Color | Red, Black |
| Compatible Manufacturer Part Number | RFK03L |
| Compatible Manufacturer Model Number | RFK03L |
| For Use with Mfr. Model Number | RFK03L |
| [Ue] Rated Operational Voltage | 250 V DC || 240 V AC |
| Wiring Configuration | 3-wire |
| Short-Circuit Current | 10 kA for H or K || 10 kA for R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J |
| Disconnector Device Type | fusible disconnect |
| Electrical Connection | Lugs |
| Awg Gauge | AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper |
| Line Rated Current | 30 A |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10) |
| Fuse Type | H, K, J, R |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Product Certifications | UL listed file E2875 |
| Condition Of Use | suitable service entrancefor USA || suitable service entrancefor Mexico |
| Series Name | heavy duty |
| Product Or Component Type | Single Throw Safety Switch |
| Device Composition | neutral |
| Device Application | heavy application |
| Device Mounting | surface |
| Package Quantity | 1 |
