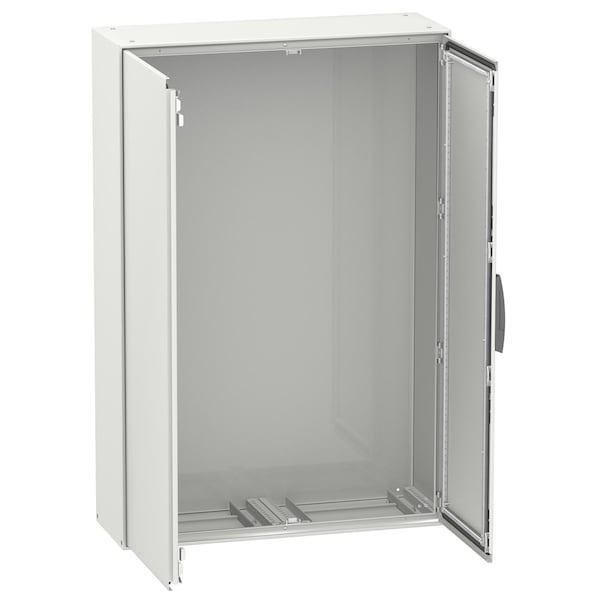

Galvanized Steel Electrical Enclosures, 78.7 in H, 19.7 in D, 39.4 in W, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 39.4 in |
| Nominal Height | 78.7 in |
| Nominal Depth | 19.7 in |
| Material of Enclosure | Galvanized Steel |
| Closure Method | Lock |
| Enclosure Cover Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Light Gray |
| Finish | Epoxy Polyester Powder |
| Mounting | Floor |
| Solid / Clear Cover | Solid |
| Standards | IEC 62208 |
| Weight | 165 kg |
| Device Composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle door, 1 blocking system left door, 4 mounting plate bracket, 1 mounting plate |
| Ik Degree of Protection | IK10 IEC 62262 |
| Removable Parts | door by screws hinge, mounting plate by screws mounting plate bracket, mounting plate bracket by screws |
| Package Quantity | 1 |
