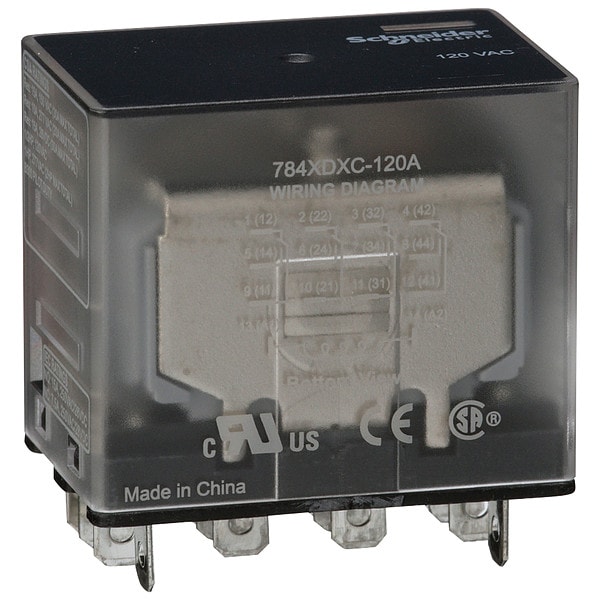

Relé de propósito general, 120V AC Voltios de Bobina, Cuadrado, 14 Pines, 4PDT
| Item | General Purpose Relay |
|---|---|
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 12A @ 277V, 15A @ 120V |
| DC Contact Rating - Relay | 12 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 1.5 VA |
| Contact Material | Gold Flashed Silver Alloy |
| Body Height - Relay | 1.4 in |
| Body Width - Relay | 1.6 in |
| Body Depth - Relay | 1.1 in |
| Overall Height - Relay | 1.64 in |
| Features | Gold Flashed Contacts |
| Standards | CE Certified, CSA Certified, UL Listed |
| Status Indicator | Mechanical Flag |
| Contact Form | 4PDT |
| Contact Rating | 15A @ 120VAC, 12A @ 277VAC/28VDC |
| HP @ 240V | 3/4 hp |
| HP @ 120V | 1/2 hp |
| Item - Relay | General Purpose Relay |
| Pins | 14 |
| Push To Test | No |
| Socket Code | F |
| Base Type | Square |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Socket | Mfr. No. 70-784D14-1 |
| Horsepower @ 120V AC | 1/2 hp |
| Body Depth | 1.37 in |
| Push-To-Test Method | No Button |
| Input Voltage | 120 V AC |
| Response Time | 20 msec |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Weight | 2.5 oz |
| Number of Pins | 14 |
| Electrical Connection | Faston Terminal |
| Dielectric Strength | 1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles |
| Maximum Operating Temperature | 131 deg F |
| Frequency | 50/60 Hz |
| Base Shape | Square |
| Coil Resistance | 2,100 ohms |
| Motor Rated | Yes |
| IP Rating | IP40 |
| Coil Voltage | 120 V AC |
| For Use With | Automation Panels and Controls |
| Current Rating | 15 A |
| Contact Rating (AC) | 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V |
| Overall Depth | 1.66 in |
| Body Height | 1.07 in |
| Flat Pin Width | 0.187 in |
| Operating Current | 10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC) |
| Horsepower @ 240V AC | 0.75 HP |
| Mounting Style | Socket |
| Electrical Operating Durability | 100,000 |
| Minimum Switching Current | 10 mA |
| Maximum Switching Voltage | 250 V AC, 300 V DC |
| Power Consumption | 1.6 W, 2.5 VA |
| Mechanical Operating Durability | 10,000,000 |
| Contact Rating (DC) | 15 A @ 28V (NO), 7.55 A @ 28V (NC) |
| Minimum Operating Temperature | -40 deg F |
| Series | 784 Series |
| Body Width | 1.6 in |
| Depth | 1.07 in |
| Width | 1.6 in |
| Mechanical Durability | 10,000,000 cycle |
| Vibration Resistance | +/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz) |
| Contacts Material | Silver alloy, gold flashed |
| Height | 1.37 in |
| Rated Operational Current | 15 A at 120...277 V AC conforming to UL; 15 A at 28 V DC conforming to UL; 15 A at 120/150 V AC conforming to CSA; 10 A at 151/277 V AC conforming to CSA; 15 A at 28 V DC conforming to CSA; 15 A at 250 V AC (NO) conforming to IEC; 15 A at 28 V DC (NO) conforming to IEC; 7.55 A at 250 V AC (NC) conforming to IEC; 7.55 A at 28 V DC (NC) conforming to IEC |
| Power consumption in VA | 2.5 VA AC |
| Local Signalling | Flag |
| Connections Terminals | Faston terminals |
| Product Range | Legacy |
| Drop-out Voltage Threshold | >= 0.15 Uc AC; >= 0.1 Uc DC |
| Ambient Air Temperature for Operation | -40 to 131°F |
| Motor Power HP | 0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz |
| Ambient Air Temperature for Storage | -40 to 185°F |
| Shock Resistance | 15 gn in operation |
| Electrical Durability | 100000 cycles resistive |
| Product Certifications | CSA, UL, CE |
| Operating Time | 20 ms operating; 20 ms tripping |
| Power consumption in W | 1.6 W DC |
| Voltage Range | 0.8...1.1 Un AC, DC |
| Product Type | Power relay |
| Contact Composition | 4 NO + 4 NC |
| Package Quantity | 1 |
