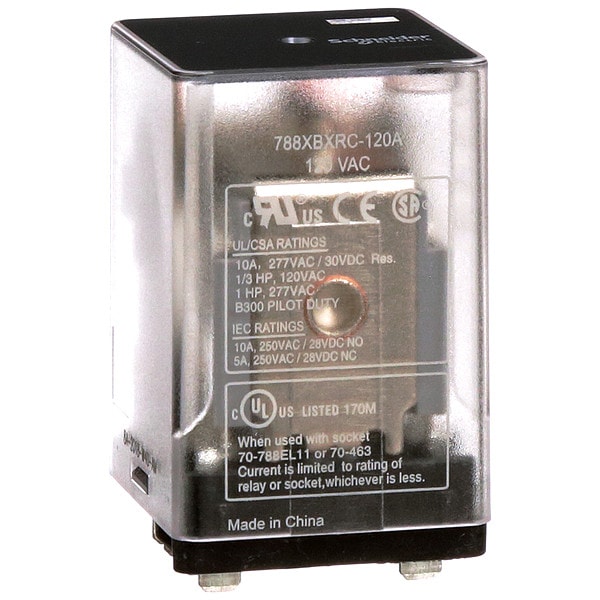

Relevador de uso general, 120V de voltaje en la bobina de la bobina, cuadrado, 8 pines, DPDT.
| Item | General Purpose Relay |
|---|---|
| Item - Relay | General Purpose Relay |
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 10A @ 277V |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 3 VA |
| HP @ 120V | 1/3 hp |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.97 in |
| Body Width - Relay | 1.4 in |
| Body Depth - Relay | 1.38 in |
| Overall Height - Relay | 1.97 in |
| Features | Clear Cover |
| Standards | CE Certified, CSA Certified, EAC, UL Listed |
| Socket Code | C |
| Contact Form | DPDT |
| Base Type | Square |
| Status Indicator | Mechanical Flag |
| Contact Rating | 10A @ 277VAC/30VDC |
| Socket | Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2 |
| Pins | 8 |
| Push To Test | No |
| HP @ 240V | 1/2 hp |
| Motor Rated | Yes |
| Power Consumption | 3 VA |
| Electrical Operating Durability | 100,000 |
| Weight | 2.93 oz |
| Body Depth | 1.97 in |
| Input Voltage | 120 V AC |
| Push-To-Test Method | No Button |
| Maximum Switching Voltage | 250 V, 300 V |
| Flat Pin Width | 0.189 in |
| Mechanical Operating Durability | 5,000,000 |
| Maximum Operating Temperature | 131 deg F |
| Mounting Style | Plug-In |
| Current Rating | 10 A |
| Electrical Connection | Blade Terminal |
| Overall Depth | 1.97 in |
| Response Time | 20 msec |
| Contact Rating (AC) | 10 A @ 277V, 5 A @ 250V-1 (NC) |
| Coil Voltage | 120 V AC |
| Number of Pins | 8 |
| Series | 788R Series |
| Horsepower @ 240V AC | 0.5 HP |
| Operating Current | 10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC) |
| Minimum Switching Current | 10 mA |
| Dielectric Strength | 1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact |
| Body Width | 1.38 in |
| IP Rating | IP40 |
| Horsepower @ 120V AC | 1/3 hp |
| Contact Rating (DC) | 10 A @ 28 V |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Sealing | Enclosed |
| Base Shape | Square |
| Minimum Operating Temperature | -40 deg F |
| Coil Resistance | 1,700 ohms |
| Pin Shape | Flat |
| Body Height | 1.4 in |
| Width | 1.38 in |
| Depth | 1.4 in |
| Height | 1.97 in |
| Drop-out Voltage Threshold | >= 0.15 Uc AC; >= 0.1 Uc DC |
| Operating Time | 20 msec |
| Contacts Material | Silver alloy, gold flashed |
| Ambient Air Temperature for Operation | -40 to 131°F |
| Contact Composition | 2 NC + 2 NO |
| Shock Resistance | 10 gn |
| Product Certifications | CSA, UL, CE, EAC |
| Vibration Resistance | +/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation |
| Rated Operational Current | 10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC |
| Ambient Air Temperature for Storage | -40 to 185°F |
| Product Type | Relay |
| Electrical Durability | 100000 cycles |
| Control Circuit Voltage Limits | 0.85...1.1 Un AC |
| Rated Power in HP | 0.33 HP 120 V AC; 1 HP 277 V AC |
| [Ue] rated operational voltage | 120 V AC |
| Local Signalling | Flag Cover |
| Resistance | 1,700 ohms |
| Mechanical Durability | 5,000,000 cycle |
| Package Quantity | 1 |
