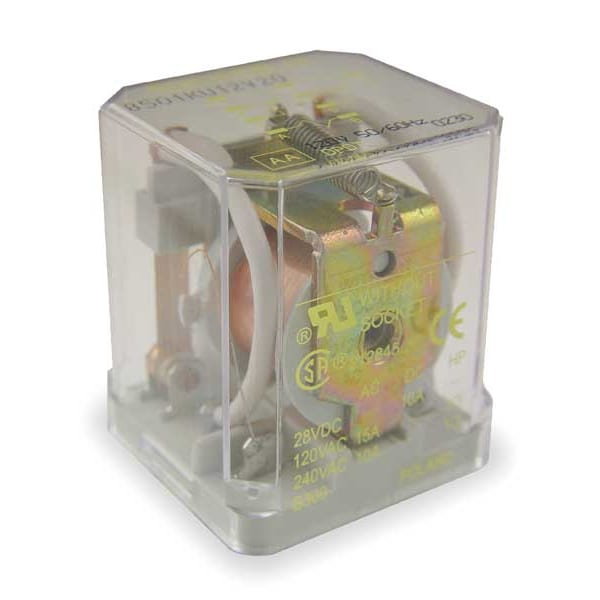

Relevador de propósito general, 120V AC de voltaje en la bobina, cuadrado, 8 pines, doble polo, doble tiro.
| Push To Test | No |
|---|---|
| Body Height - Relay | 1.97 in |
| DC Contact Rating - Relay | 10 A @ 30 V |
| Coil Volts | 120V AC |
| Body Width - Relay | 1.37 in |
| Power Consumption - Relay | 3 VA |
| HP @ 120V | 1/3 hp |
| Item | General Purpose Relay |
| Socket | Mfr. No. 8501NR82 |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Overall Height - Relay | 2.26 in |
| Features | Spade Terminals |
| Standards | CE Certified, CSA Certified, UL Listed |
| Contact Rating | 12A @ 240VAC/28VDC |
| AC Contact Rating - Relay | 10A @ 277V |
| Status Indicator | Mechanical Flag |
| Contact Form | DPDT |
| Pins | 8 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Socket Code | C |
| Base Type | Square |
| Contact Material | Silver Alloy |
| HP @ 240V | 1/2 hp |
| Body Depth - Relay | 1.4 in |
| Item - Relay | General Purpose Relay |
| Base Type - Plug In Relay | Square |
| Body Width | 0.9 in |
| Number of Pins | 8 |
| Contact Rating (AC) | 10 A @ 277V |
| Response Time | 20 msec |
| Base Shape | Square |
| Overall Depth | 2.26 in |
| Coil Voltage | 120 V AC |
| Series | Square D 8501K Series |
| Motor Rated | Yes |
| Current Rating | 10 A |
| Maximum Switching Voltage | 300 V AC, 30 V DC |
| Horsepower @ 240V AC | 0.5 HP |
| Sealing | Enclosed |
| Mounting Style | Socket |
| Body Height | 1.28 in |
| Contact Rating (DC) | 10 A @ 30 V |
| Pin Shape | Flat |
| Electrical Connection | Quick-Connect |
| Power Consumption | 3 VA |
| Push-To-Test Method | No Button |
| Maximum Operating Temperature | 131 deg F |
| Compatible with Manufacturer Model Number | 8501NR82 |
| Body Depth | 1.13 in |
| Horsepower @ 120V AC | 1/3 hp |
| Flat Pin Width | 0.189 in |
| Minimum Operating Temperature | -40 deg F |
| Operating Time | 20 ms - pick-up || 20 ms - drop-out |
| Operating Temp. Range | -40-131°F |
| Switching Voltage | 300 V AC, 30 V DC |
| Package Quantity | 1 |
