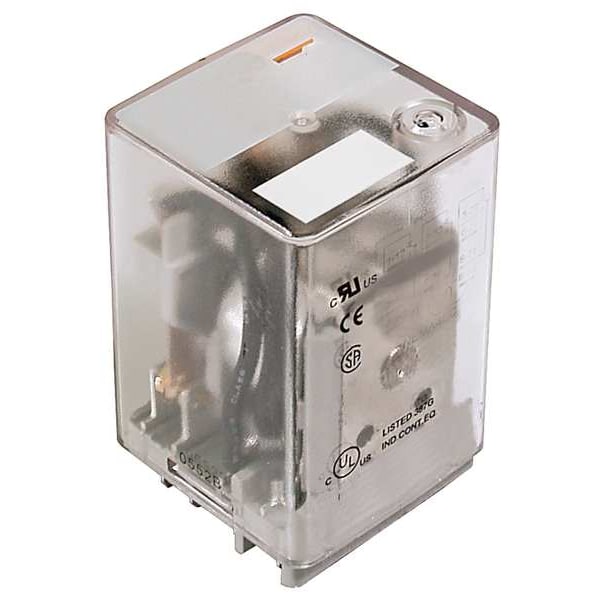

Relé de propósito general, 240V AC de voltaje en la bobina, cuadrado, 8 pines, DPDT
| Item | General Purpose Relay |
|---|---|
| Coil Volts | 240V AC |
| AC Contact Rating - Relay | 16A @ 277V |
| DC Contact Rating - Relay | 16 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 3 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.97 in |
| Body Width - Relay | 1.37 in |
| Body Depth - Relay | 1.4 in |
| Overall Height - Relay | 2.21 in |
| Features | Gold Flashed Contacts |
| Standards | CE Certified, CSA, UL Listed |
| Contact Form | DPDT |
| Socket | Mfr. No. 70-463-1, 70-788EL11-1 |
| Contact Rating | 16A @ 277VAC/28VDC |
| Pins | 8 |
| Item - Relay | General Purpose Relay |
| Status Indicator | Mechanical Flag |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| HP @ 120V | 1/3 hp |
| Push To Test | Manual |
| Socket Code | C |
| Base Type | Square |
| HP @ 240V | 1/2 hp |
| Contact Rating (AC) | 16 A @ 277V |
| Weight | 0.2 |
| Mounting Style | Plug-In |
| Coil Voltage | 240 V AC |
| Response Time | 20 msec |
| Body Width | 1.37 in |
| Number of Pins | 8 |
| Push-To-Test Method | Manual |
| Body Depth | 1.4 in |
| Series | 788R Series |
| Base Shape | Square |
| Overall Depth | 2.21 in |
| Power Consumption | 3 VA |
| For Use With | General Purpose Relay |
| Body Height | 1.97 in |
| Horsepower @ 120V AC | 1/3 hp |
| Horsepower @ 240V AC | 0.5 HP |
| Contact Rating (DC) | 16 A @ 28 V |
| Motor Rated | Yes |
| Input Voltage | 240 V AC |
| Package Quantity | 1 |
