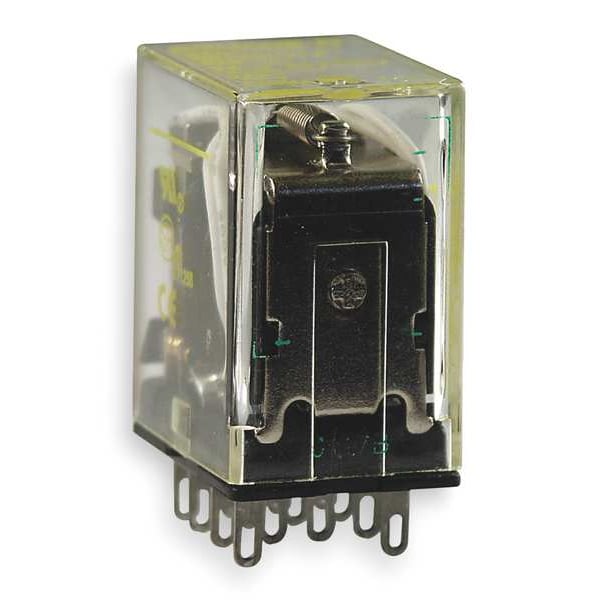

Relé de propósito general, 24V de voltaje en la bobina de la CC, forma cuadrada, 14 pines, 4PDT.
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 5A @ 240V |
| DC Contact Rating - Relay | 5 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | Not Rated |
| Features | Green Indicator Relay Energised LED |
| Body Depth - Relay | 1.1 in |
| Push To Test | No |
| Standards | CE Certified, CSA Certified, UL Listed |
| Body Height - Relay | 1.4 in |
| Item | General Purpose Relay |
| Overall Height - Relay | 1.71 in |
| Contact Material | Silver Alloy |
| Mounting | Side |
| Power Consumption - Relay | 0.9 W |
| HP @ 240V | Not Rated |
| Body Width - Relay | 0.86 in |
| Status Indicator | Mechanical Flag, LED Indicator |
| Contact Form | 4PDT |
| Flat Pin Width | 0.09 in |
| Electrical Connection | Quick-Connect |
| Response Time | 20 msec |
| Contact Rating (AC) | 5 A @ 240V |
| Pin Shape | Flat |
| Power Consumption | 0.9 W |
| Body Height | 2.09 in |
| Body Depth | 1.4 in |
| Maximum Switching Voltage | 300 V AC, 30 V DC |
| Sealing | Enclosed |
| Overall Depth | 1.63 in |
| Base Shape | Square |
| Series | Square D 8501R Miniature Control Series |
| Contact Rating (DC) | 5 A @ 28 V |
| Body Width | 1.38 in |
| Socket Code | G |
| Compatible with Manufacturer Model Number | 8501NR45, 8501NR45B |
| Horsepower @ 120V AC | 1/3 hp |
| Horsepower @ 240V AC | Not Rated |
| Number of Pins | 14 |
| Coil Voltage | 24 V DC |
| Motor Rated | Yes |
| Minimum Operating Temperature | -40 deg F |
| Push-To-Test Method | No Button |
| Current Rating | 6 A |
| Maximum Operating Temperature | 131 deg F |
| Mounting Style | Socket |
| Operating Time | 20 ms - pick-up || 20 ms - drop-out |
| Switching Voltage | 300 V AC, 30 V DC |
| Operating Temp. Range | -40-131°F |
| Package Quantity | 1 |
