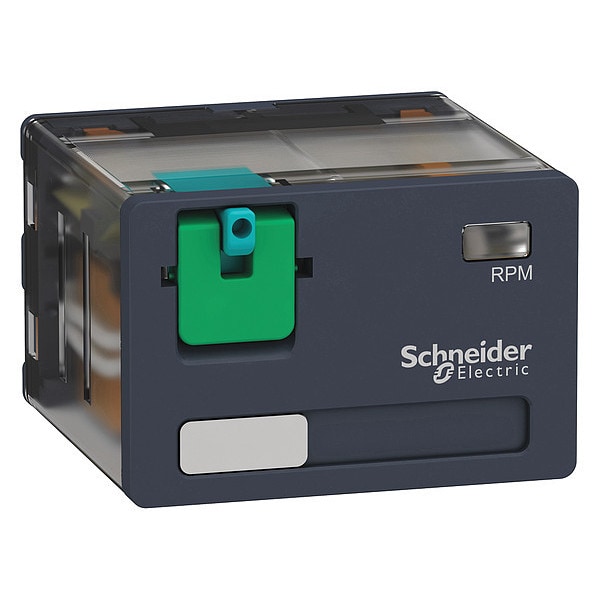

Relé de propósito general, 24V DC Voltios de Bobina, Cuadrado, 14 Pines, 4PDT
| Item - Relay | General Purpose Relay |
|---|---|
| Item | General Purpose Relay |
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 15A @ 277V |
| DC Contact Rating - Relay | 15 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | Not Rated |
| Power Consumption - Relay | 1.6 W |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.82 in |
| Body Width - Relay | 1.57 in |
| Body Depth - Relay | 1.06 in |
| Overall Height - Relay | 2.13 in |
| Features | Plug In Protection Module to Protect Against Electrical Spikes |
| Standards | CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed |
| HP @ 240V | Not Rated |
| Socket Code | F |
| Status Indicator | Mechanical Flag |
| Contact Form | 4PDT |
| Push To Test | Lockable |
| Base Type | Square |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Pins | 14 |
| Socket | Mfr. No. RPZF4 |
| Contact Rating | 15A @ 277VAC/28VDC |
| Maximum Switching Voltage | 250 V |
| Horsepower @ 120V AC | Not Rated |
| Horsepower @ 240V AC | Not Rated |
| Overall Depth | 1.82 in |
| Minimum Switching Current | 10 mA |
| Power Consumption | 1.6 W |
| IP Rating | IP40 |
| Response Time | 20 msec |
| Motor Rated | Not Rated - Not Rated |
| Weight | 2.56 oz |
| Current Rating | 15 A |
| Electrical Operating Durability | 100,000 |
| Body Width | 1.61 in |
| For Use With | Hard-Wired Logic Automated Systems |
| Series | Harmony(TM) RPM Series |
| Body Depth | 1.54 in |
| Input Voltage | 26.4 V DC |
| Push-To-Test Method | Lockable |
| Coil Resistance | 303 ohms |
| Number of Pins | 14 |
| Maximum Operating Temperature | 131 deg F |
| Mechanical Operating Durability | 10,000,000 |
| Dielectric Strength | 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic |
| Minimum Operating Temperature | -40 deg F |
| Contact Rating (AC) | 15 A @ 250V |
| Flat Pin Width | 0.18 in |
| Coil Voltage | 24 V DC |
| Electrical Connection | Quick-Connect |
| Sealing | Enclosed |
| Base Shape | Square |
| Contact Rating (DC) | 15 A @ 28 V |
| Body Height | 1.06 in |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Mounting Style | Plug-In |
| Pin Shape | Flat |
| Switching Power | Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V |
| Operating Temp. Range | -40-55°C |
| Switching Voltage | 250 V IEC |
| Protection Category | RT I |
| Operating Time | 20 ms at nominal voltage |
| Series Name | Power |
| Ambient Air Temperature For Operation | -40 to 131°F |
| Degree Of Protection | IP40 conforming to IEC 60529 |
| Conventional Enclosed Thermal Current | 15 A -40 to 131°F (-40 to 55°C) |
| Average Coil Resistance | 303 Ohm at 68°F (20°C) +/- 10% |
| Device Presentation | complete product |
| Utilisation Coefficient | 0.2 |
| Control Circuit Voltage | 24 V DC |
| Operating Rate | Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load |
| Electrical Durability | 100000 cycles resistive |
| Drop-Out Voltage Threshold | Greater than or Equal to 0.1 Uc DC |
| Contacts Material | AgNi |
| Mechanical Durability | 10,000,000 cycle |
| Maximum Switching Capacity | 3750 VA; 420 W |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Control Type | Lockable test button |
| Rated Insulation Voltage | 250 V IEC; 300 V CSA; 300 V UL |
| Resistive Load Current | 15 A 250 V AC; 15 A 28 V DC |
| Contact Type and Composition | O, 4 C |
| Product Or Component Type | Plug-in relay |
| Shock Resistance | 15 gnin operation; 30 gnnot operating |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Rated Operational Voltage Limits | 19.2 to 26.4 V DC |
| Pollution Degree | 3 |
| Product Certifications | CSA, UL, EAC |
| Status LED | Without |
| Rated Operational Current | 15 A 277 V AC) UL; 15 A 28 V DC) UL; 15 A 250 V AC) NO IEC; 15 A 28 V DC) NO IEC; 7.5 A 250 V AC) NC IEC; 7.5 A 28 V DC) NC IEC |
| Rated Impulse Withstand Voltage | 4 kV 1.2/50 µs |
| Test Levels | level A group mounting |
| Vibration Resistance | 3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 5 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating |
| Operating Position | any position |
| Package Quantity | 1 |
