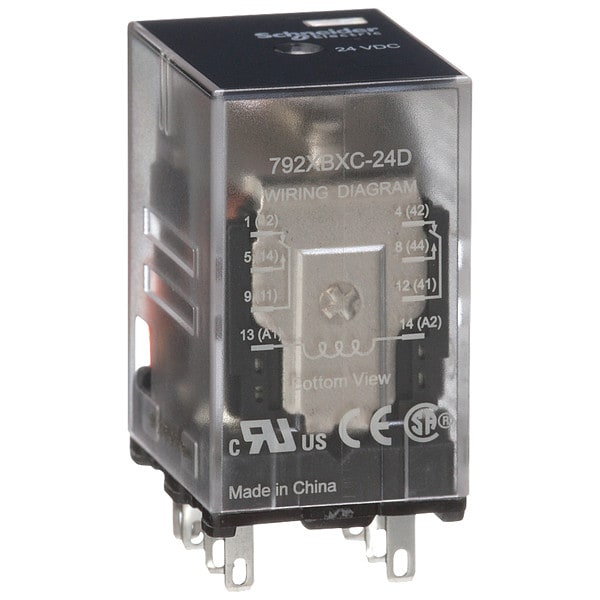

Relé de propósito general, 24V DC Coil Volts, cuadrado, 8 pines, DPDT
| Item | General Purpose Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 12A @ 277V |
| DC Contact Rating - Relay | 12 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 1.1 W |
| Contact Material | Silver |
| Body Height - Relay | 1.4 in |
| Body Width - Relay | 1.1 in |
| Body Depth - Relay | 0.83 in |
| Overall Height - Relay | 1.4 in |
| Features | Clear Cover |
| Standards | CE Certified, CSA Certified, UL Listed |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Socket Code | Q |
| HP @ 240V | 1 hp |
| Socket | Mfr. No. 70-782EL8 |
| Status Indicator | Mechanical Flag |
| Contact Rating | 12A @ 277VAC/30VDC |
| Contact Form | DPDT |
| HP @ 120V | 1/2 hp |
| Push To Test | Manual |
| Base Type | Square |
| Pins | 8 |
| Item - Relay | General Purpose Relay |
| Maximum Switching Voltage | 250 V AC, 300 V DC |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Coil Voltage | 24 V DC |
| Overall Depth | 1.97 in |
| Electrical Operating Durability | 100,000 |
| Base Shape | Square |
| Current Rating | 12 A |
| For Use With | General Purpose Relay |
| Body Depth | 1.07 in |
| Dielectric Strength | 1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles |
| Input Voltage | 24 V DC |
| Contact Rating (DC) | 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC) |
| Response Time | 25 msec |
| Number of Pins | 8 |
| Coil Resistance | 640 ohms |
| Motor Rated | Yes |
| Weight | 1.31 oz |
| Mechanical Operating Durability | 10,000,000 |
| Push-To-Test Method | Manual |
| IP Rating | IP40 |
| Series | 792 Series |
| Minimum Switching Current | 10 mA |
| Horsepower @ 240V AC | 1 HP |
| Maximum Operating Temperature | 131 deg F |
| Power Consumption | 0.8 W |
| Operating Current | 12 A AC-1 (NO Conforming to IEC), 12 A at 120V AC (Conforming to UL), 12 A at 277V AC (Conforming to UL), 12 A at 30V DC (Conforming to UL), 12 A DC-1 (NO Conforming to IEC), 6 A AC-1 (NC Conforming to IEC), 6 A DC-1 (NC Conforming to IEC) |
| Electrical Connection | Faston Connector |
| Contact Rating (AC) | 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC) |
| Horsepower @ 120V AC | 1/2 hp |
| Body Width | 1.6 in |
| Body Height | 1.37 in |
| Minimum Operating Temperature | -40 deg F |
| Mounting Style | Plug-In |
| Depth | 1.07 in |
| Width | 0.83 in |
| Mounting | Panel; DIN rail |
| Surge Withstand Duration | 1.2/50µs |
| Motor Power HP | 0.5 hp 120 V AC; 1 hp 277 V AC |
| Mechanical Durability | 10,000,000 cycle |
| Contacts Material | Silver |
| Operating Time | 25 msec, 20 msec (at maximum rated voltage) |
| Height | 1.37 in |
| Drop-out Voltage Threshold | >= 0.15 Uc AC; >= 0.1 Uc DC |
| Shock Resistance | 10 gn in operation; 30 gn not operating |
| Vibration Resistance | 3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating |
| Connections Terminals | Faston connectors |
| Product Certifications | CSA, UL, CE |
| Rated Operational Current | 12 A at 277 V AC conforming to UL; 12 A at 120 V AC conforming to UL; 12 A at 30 V DC conforming to UL; 12 A AC-1 (NO) conforming to IEC; 6 A AC-1 (NC) conforming to IEC; 12 A DC-1 (NO) conforming to IEC; 6 A DC-1 (NC) conforming to IEC |
| Local Signalling | Flag |
| Product Range | Legacy |
| Contact Composition | 2 NO + 2 NC |
| Power consumption in W | 0.8 W DC |
| Product Type | Relay |
| Voltage Range | 0.8...1.1 Un AC, DC |
| Ambient Air Temperature for Storage | -40 to 185°F |
| Ambient Air Temperature for Operation | -40 to 131°F |
| Electrical Durability | 100000 cycles resistive |
| Package Quantity | 1 |
