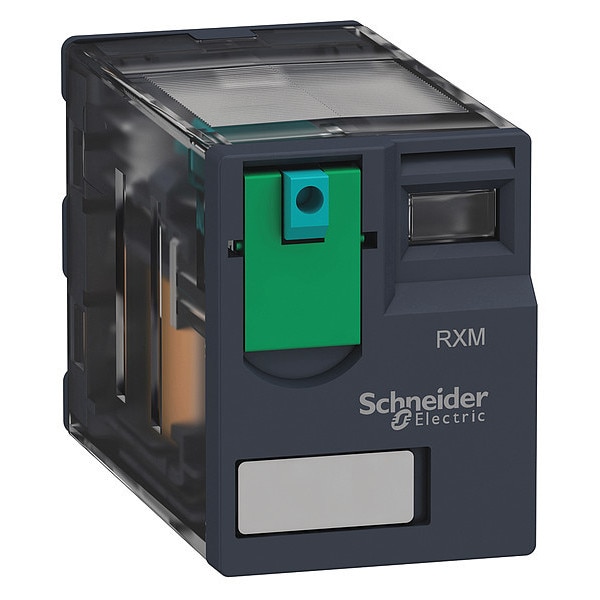

Relevador de uso general, 24V DC de voltaje en la bobina, cuadrado, 8 pines, DPDT.
| Item | General Purpose Relay |
|---|---|
| Item - Relay | General Purpose Relay |
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 12A @ 277V |
| DC Contact Rating - Relay | 12 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | Not Rated |
| Power Consumption - Relay | 1.1 W |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.81 in |
| Body Width - Relay | 0.83 in |
| Body Depth - Relay | 1.06 in |
| Overall Height - Relay | 2.17 in |
| Features | Lockable Test Button |
| Standards | CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed |
| Pins | 8 |
| Contact Form | DPDT |
| Status Indicator | Mechanical Flag |
| Base Type | Square |
| Socket | Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M |
| Contact Rating | 12A @ 277VAC/30VDC |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Socket Code | K |
| Push To Test | Lockable |
| HP @ 240V | Not Rated |
| Contact Rating (AC) | 12 A @ 250V |
| Input Voltage | 26.4 V DC |
| Body Width | 0.82 in |
| Contact Rating (DC) | 12 A @ 28 V |
| Motor Rated | Not Rated - Not Rated |
| Pin Shape | Flat |
| Electrical Connection | Quick-Connect |
| Coil Voltage | 24 V DC |
| Series | Harmony(TM) RXM Series |
| Push-To-Test Method | Lockable |
| Number of Pins | 8 |
| Response Time | 20 msec |
| Weight | 1.28 oz |
| Base Shape | Square |
| Power Consumption | 0.9 W |
| Minimum Switching Current | 10 mA |
| Flat Pin Width | 0.09 in |
| IP Rating | IP40 |
| Horsepower @ 120V AC | Not Rated |
| Dielectric Strength | 1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Basic Insulation, 2,000V AC Between Poles with Basic Insulation |
| Current Rating | 12 A |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Overall Depth | 1.8 in |
| Maximum Switching Voltage | 250 V |
| Sealing | Enclosed |
| Mechanical Operating Durability | 10,000,000 |
| Horsepower @ 240V AC | Not Rated |
| Body Depth | 1.57 in |
| Body Height | 1.06 in |
| Coil Resistance | 650 ohms |
| Electrical Operating Durability | 100,000 |
| Maximum Operating Temperature | 131 deg F |
| Minimum Operating Temperature | -40 deg F |
| For Use With | RXZE Socket |
| Mounting Style | Plug-In |
| Switching Voltage | 250 V IEC |
| Switching Power | Max 3000 VA/336 W; Min 170 mW 10 mA, 17 V |
| Protection Category | RT I |
| Operating Temp. Range | -40-55°C |
| Operating Time | 20 msec |
| Package Quantity | 1 |
