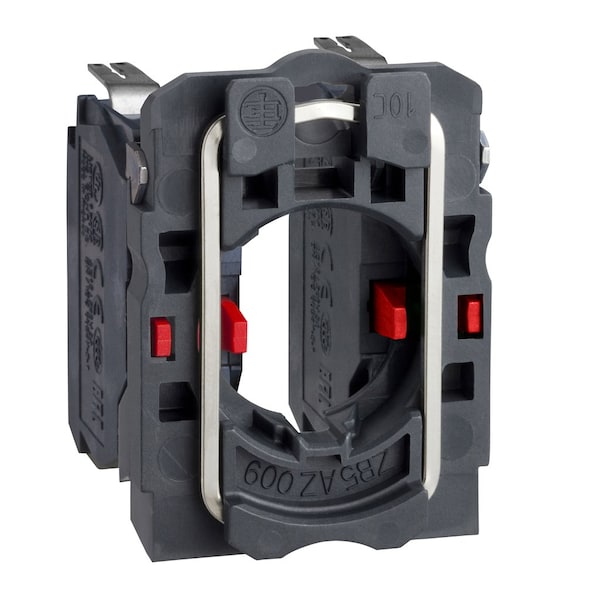

Cuerpo completo de contacto Harmony, cuerpo para botones de presión o interruptores selectores, XB6, bloque de contacto único con cuerpo/collar de fijación y conector faston 2NC.
| Item | Single contact block with body/fixing co |
|---|---|
| Type | Standard Contacts |
| Number of NC Aux. Contacts | 2 |
| For Use With | Harmony XB5 |
| Includes | Body, Fixing Collar |
| Standards | EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, JIS C8201-1 |
| Depth | 32 mm |
| Height | 42 mm |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Width | 30 mm |
| Contacts Material | silver alloy (Ag/Ni) |
| Contact Operation | slow-break |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| Connections - Terminals | Faston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm |
| Mechanical Durability | 10000000 cycles |
| Ip Degree of Protection | IP20 IEC 60529 |
| Range of Product | Harmony XB5 |
| Ambient Air Temperature For Operation | -40-70°C |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Contact Block Type | single |
| Device Composition | body, fixing collar |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Protective Treatment | TH |
| Device Short Name | ZB5 |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Head Type | Standard |
| Fixing Collar Material | plastic |
| Ambient Air Temperature For Storage | -40-70°C |
| Operating Travel | 1.5 mm NC changing electrical state), 4.3 mm total travel) |
| Contacts Usage | standard contacts |
| Contacts Type And Composition | 2 NC |
| Terminals Description Iso N°1 | (11-12)NC |
| Product or Component Type | complete body/contact assembly |
| Package Quantity | 1 |
