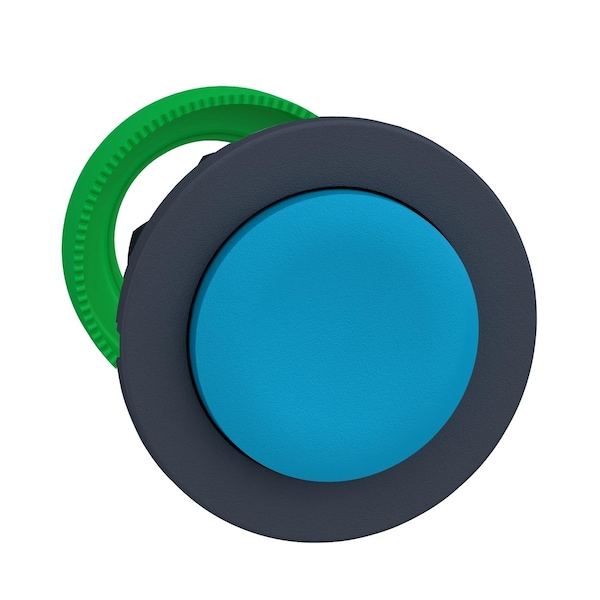

Harmony XB5, cabeza de pulsador empotrable antimicrobiano, de plástico, proyectante, azul, Ø30, retorno por resorte, sin marcar, bisel gris oscuro.
| Item | Flush mounted blue projecting pushbutton |
|---|---|
| Bezel Material | dark grey plastic |
| Standards | EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1 |
| Cad Overall Height | 37 mm |
| Cad Overall Depth | 32 mm |
| Device Presentation | basic element |
| Ambient Air Temperature For Operation | -40-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Operator Profile | blue projecting, unmarked |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E |
| Shape Of Signaling Unit Head | round |
| Head Type | built-in, flush |
| Mounting Diameter | 30.5 mm |
| Cad Overall Width | 37 mm |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Product Compatibility | ZBYF to || ZBZF32 || ZBZF33 || ZB5AZ |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TH |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Product Certifications | GL || UL Listed || BV || CSA || LROS (Lloyds register of shipping) || DNV |
| Device Short Name | ZB5 |
| Mechanical Durability | 10,000,000 cycle |
| Product Or Component Type | head for non-illuminated push-button |
| Overvoltage Category | class II IEC 60536 |
| Type Of Operator | spring return |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
