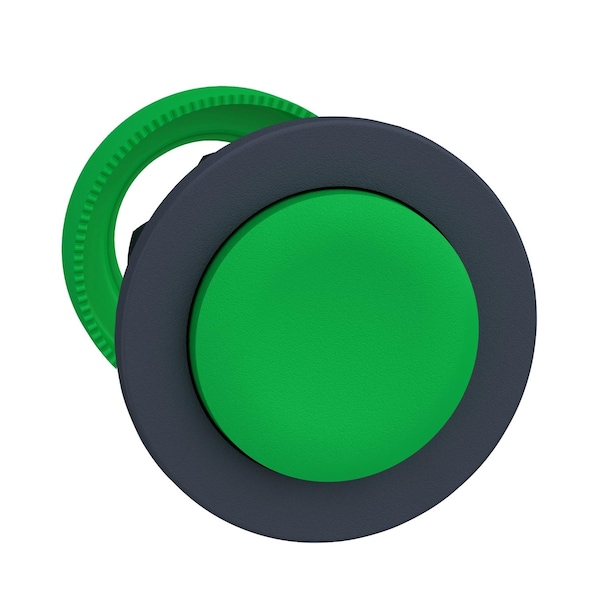

Harmony XB5, cabezal de botón de presión empotrado antimicrobiano, de plástico, saliente, color verde, Ø30, retorno por resorte, sin marcar, bisel gris oscuro.
| Item | Push Button Extended Green |
|---|---|
| Type of Operator | spring return |
| Standards | UL 508, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-1 |
| Depth | 32 mm |
| IP Rating | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653. |
| Height | 37 mm |
| Width | 37 mm |
| Header | built-in, flush |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Ambient Air Temperature For Operation | -40-70°C |
| Product or Component Type | head for non-illuminated push-button |
| Electrical Composition Code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting |
| Head Type | built-in-flush |
| Product Compatibility | ZBYF..., ZBZF32, ZBZF33, ZB5AZ |
| Device Presentation | basic element |
| Overvoltage Category | class II IEC 60536 |
| Range of Product | Harmony XB5 |
| Device Short Name | ZB5 |
| Bezel Material | plastic |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6, 2 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree of Protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Diameter | 30.5 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Operator Profile | green projecting, unmarked |
| Mechanical Durability | 10,000,000 cycle |
| Ik Degree of Protection | IK03 conforming to IEC 50102 |
| Shape of Signaling Unit Head | round |
| Package Quantity | 1 |
