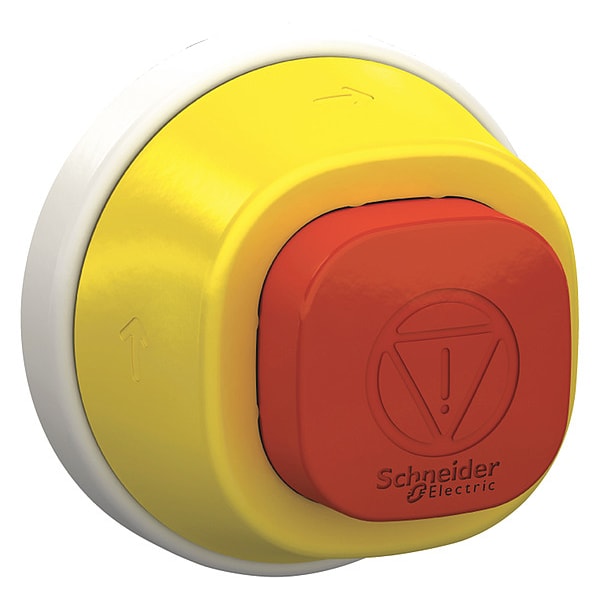

Botón de paro de emergencia para cabeza de 22 mm, color rojo.
| Action | Maintained |
|---|---|
| Size | 22 mm |
| Head Material | Plastic |
| Legend/Background Color | No Legend |
| Lamp Voltage | Dependant on Module Used |
| NEMA Rating | 13, 4X |
| Lamp Type | LED |
| Type of Operator | Square Push Button |
| Color | Red |
| Legend | Not Applicable |
| Bezel | Plastic |
| Number of Operators | 1 |
| Item | Emergency Stop Push Button |
| Bezel Material | Plastic |
| Terminal Connection | Not Applicable |
| Lamp Module Voltage | Module Not Included |
| Replacement Lamp | Module Not Included |
| Features | Latching |
| IP Rating | IP66 |
| Lamp Module Type | Full Voltage |
| Standards | EN/IEC 60947-1, CSA, EAC, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, ISO 21702, ISO 22196:2011, REACH Free of SVHC, RoHS, Type 12 UL 50E, Type 13 UL 50E, Type 4 UL 50E, Type 4X UL 50E, UL 508 |
| Series | XB5 |
| Basic Material | Plastic |
| Overall Width | 2.36 in |
| Overall Height | 2.36 in |
| Protective Treatment | TH |
| [Us] Rated Supply Voltage | 24 V, 24 V AC/DC 50 to 60 Hz |
| Light Source Colour | red, white |
| Device Presentation | basic element |
| Shape Of Signaling Unit Head | round |
| Supply Voltage Limits | 19.2-30 V DC 21.6-26.4 V AC |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E |
| Electrical Insulation Class | class II IEC 61140 |
| Reset | turn to release |
| Ik Degree Of Protection | IK05 IEC 50102 |
| Head Type | Standard |
| Mechanical Durability | 300,000 cycle |
| Product Compatibility | ZB5 |
| Device Short Name | ZB5 |
| Operator Profile | red square 32 mm |
| Mounting Diameter | 22 mm |
| Product Certifications | UL Listed || CSA || EAC |
| Compatibility Code | ZB5 |
| Cad Overall Width | 60 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Electrical Composition Code | C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| [Ui] Rated Insulation Voltage | 24 V 3)EN/IEC 60947-1 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ambient Air Temperature For Storage | -40-70°C |
| Resistance To Electrostatic Discharge | 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Cad Overall Depth | 40 mm |
| Ambient Air Temperature For Operation | -40-70°C |
| Cad Overall Height | 60 mm |
| Product Or Component Type | head for illuminated emergency stop push-button |
| Push Button Style | Mushroom Head |
| Maintained Action Release | Twist |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Legend Color | Not Applicable |
| Product Type | Push Button |
| Manufacturer Warranty Length | 18 mo |
| Lamp Voltage - Maximum | 24 V AC/DC |
| Mushroom Head Diameter | 60 mm |
| Operating Temperature - Minimum | -40 deg F |
| Hazardous Location Specification | Not Rated |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Panel Cutout Diameter | 22 mm |
| Legend Background Color | Not Applicable |
| Head Color | Red |
| Number of Indicator Lights | 0 |
| Operating Temperature - Maximum | 158 deg F |
| Operator Material | Plastic |
| Operator Illumination | Illuminated |
| Overall Depth | 1.57 in |
| Package Quantity | 1 |
