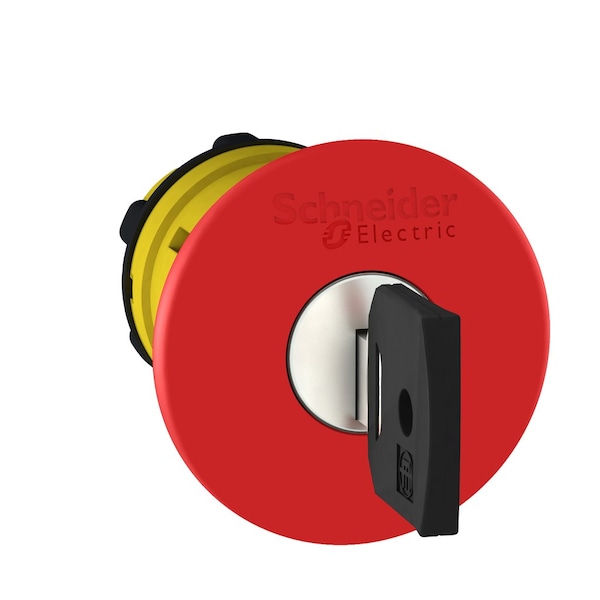

Cabeza para botón de paro de emergencia, Harmony XB5, apagado, plástico, rojo con forma de hongo 40mm, 22mm, disparador/liberación de llave de traba, Dom 4A185.
| Type of Operator | latching |
|---|---|
| Item | Red 040 Emergency stop,switching off he |
| Bezel Material | dark grey plastic |
| Height | 40 mm |
| Width | 40 mm |
| Standards | CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60204-1, GB 14048.5, EN/IEC 60947-5-1, UL 508, JIS C8201-5-1, IEC 60364-5-53, EN/ISO 13850, JIS C8201-1 |
| Type of Keylock | Dom 4A185 |
| Shape of Signaling Unit Head | round |
| Range of Product | Harmony XB5 |
| Station Name | XALD 1 cut-out, XALK 1 cut-out |
| Ambient Air Temperature For Storage | -40-70°C |
| Compatibility Code | ZB5 |
| Electrical Composition Code | C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting, C10 4 single and double front mounting |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Short Name | ZB5 |
| Mechanical Durability | 300,000 cycle |
| Head Type | Standard |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Product or Component Type | head for emergency stop push-button |
| Key Withdrawal Position | center |
| Reset | key release |
| Ik Degree of Protection | IK03 IEC 50102 |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Mounting Diameter | 22 mm |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Device Presentation | basic element |
| Overvoltage Category | class II IEC 60536 |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Destination | emergency stop push-button |
| Cad Overall Width | 40 mm |
| Cad Overall Depth | 79 mm |
| Cad Overall Height | 40 mm |
| Product Certifications | UL Listed || CSA || BV || GL || DNV || LROS (Lloyds register of shipping) |
| Package Quantity | 1 |
