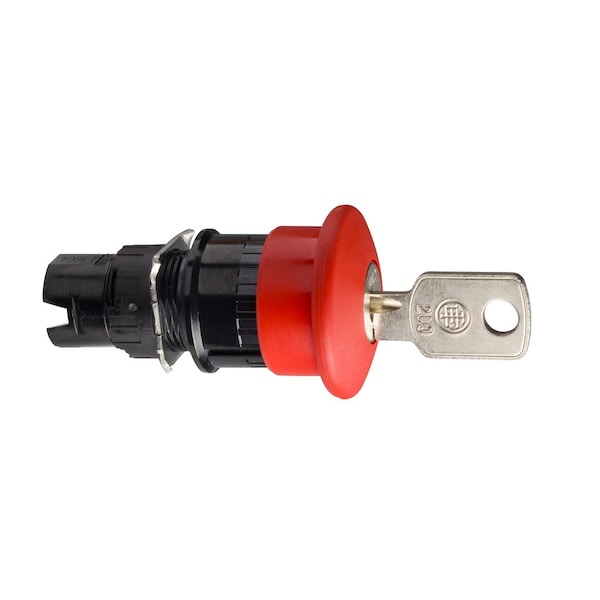

Botón de parada de emergencia para cabeza, Harmony XB6, rojo en forma de hongo de 30mm, 16mm, llave de activación / retención para liberar, sin marcar.
| Type of Operator | latching |
|---|---|
| Item | Red 030 Emergency stop pushbutton head 0 |
| Bezel Material | plastic |
| Height | 30 mm |
| Standards | JIS C8201-5-1, UL 508, EN/ISO 13850, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60204-1, JIS C8201-1 |
| Width | 30 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Device Short Name | ZB6 |
| Mechanical Durability | 100,000 cycle |
| Protective Treatment | TC |
| Shape of Signaling Unit Head | round |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6 |
| Reset | key release |
| Ambient Air Temperature For Operation | -25-70°C |
| Nema Degree of Protection | NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 |
| Ip Degree of Protection | IP65 IEC 60529 |
| Mounting Diameter | 16 mm |
| Product or Component Type | head for emergency stop push-button |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Type of Keylock | key 200 |
| Operator Profile | red mushroom Ø 30 mm, unmarked |
| Range of Product | Harmony XB6 |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 70 mm |
| Product Certifications | UL || CSA || GOST || CCC |
| Cad Overall Height | 30 mm |
| Package Quantity | 1 |
