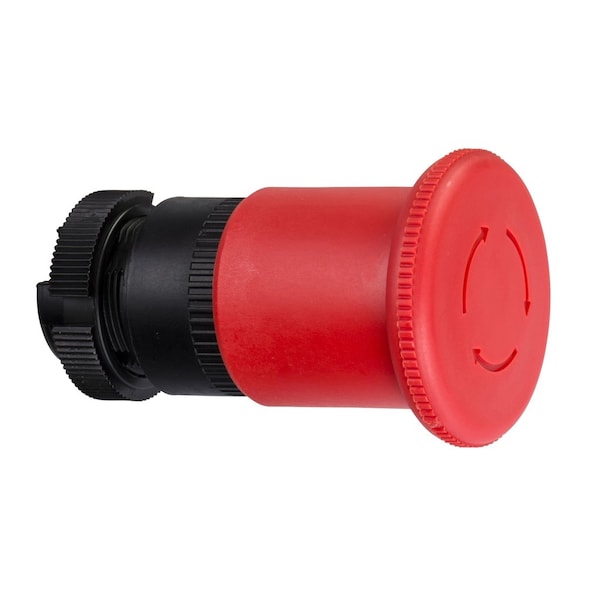

Botón rojo grande de 40mm con forma de champiñón para apagar de emergencia, marca Harmony XAC, girar para liberar, sin marcar.
| Item | Push Button |
|---|---|
| IP Rating | IP65 |
| Series | XAC |
| Features | Latched Emergency Stop Mechanism for Maximum Safety of Operators, Simple Modular Design Facilitates Post Installation Servicing, Modification and Adaption of Machines by Non-Specialists |
| Standards | CSA C22.2 No.14, IEC 60204-32, IEC 60947-5-1, IEC 60947-5-5, IEC 62262, UL 508 |
| Ambient Air Temperature For Storage | -40-70°C |
| Range of Product | Harmony XAC |
| Operator Profile | red mushroom Ø 40 mm |
| Ik Degree of Protection | IK08 |
| Overvoltage Category | class II IEC 61140 |
| Mounting Location | front of enclosure |
| Ambient Air Temperature For Operation | -25-70°C |
| Product or Component Type | head for emergency switching off push-button |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Product Compatibility | XACA.. |
| Marking | unmarked |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Operating Temperature - Minimum | -13 deg F |
| Push Button Style | Mushroom Head |
| Operating Temperature - Maximum | 158 deg F |
| Mushroom Head Diameter | 40 mm |
| Product Type | Push Button Operators |
| Manufacturer Warranty Length | 18 mo |
| Head Color | Red |
| Package Quantity | 1 |
