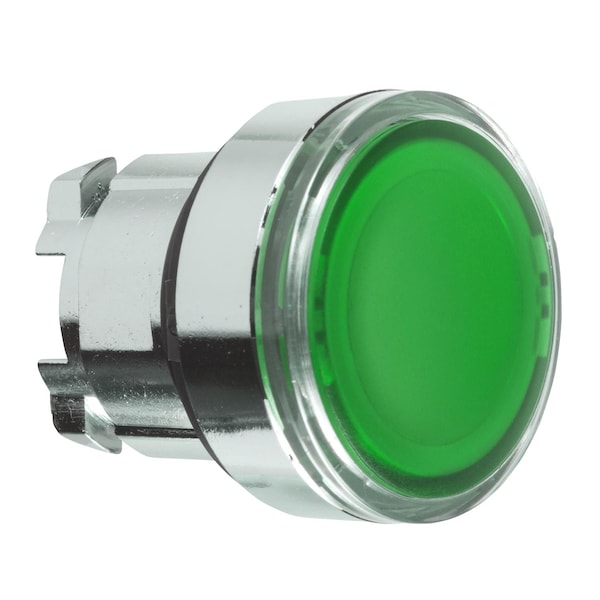

Cabeza para botón pulsador iluminado, Harmony XB4, metal, verde empotrado, 22mm, LED universal, para inserción de leyenda.
| Item | Push Button |
|---|---|
| Bezel Material | Chrome |
| IP Rating | IP66, IP67, IP69, IP69K |
| Series | XB4 |
| Terminal Connection | Screw Clamp, Plug-in |
| Features | Compatible with Universal LED Block to be used for all Colors, Improved Color Intensity and Brightness, Quick and Easy Assembly and Disassembly, Robustness to Withstand Harsh Environments |
| Standards | Bureau Veritas, CSA C22.2 No.14, DNV, GL, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, LROS, UL 508 |
| Ambient Air Temperature For Operation | -40-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Device Short Name | ZB4 |
| Device Presentation | basic element |
| Operator Profile | green flush, unmarked |
| Product Or Component Type | head for illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | Standard |
| Electrical Composition Code | M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting |
| Operator Additional Information | for insertion of legend |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Product Certifications | DNV || UL Listed || LROS (Lloyds register of shipping) || GL || CSA || BV |
| Overvoltage Category | class I IEC 60536 |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Cad Overall Width | 29 mm |
| Cad Overall Height | 29 mm |
| Mechanical Durability | 10,000,000 cycle |
| Cad Overall Depth | 30 mm |
| Mounting Diameter | 22 mm |
| Ik Degree Of Protection | IK06 EN 50102 |
| Product Compatibility | universal LED |
| Type Of Operator | spring return |
| Cap/Operator or Lens Colour | green |
| Range of Product | Harmony XB4 |
| Operating Temperature - Maximum | 158 deg F |
| Panel Cutout Diameter | 22 mm |
| Mushroom Head Diameter | Not Applicable |
| NEMA Enclosure Rating | 13, 4X |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Head Color | Green |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Minimum | -40 deg F |
| Operator Illumination | Illuminated |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Package Quantity | 1 |
