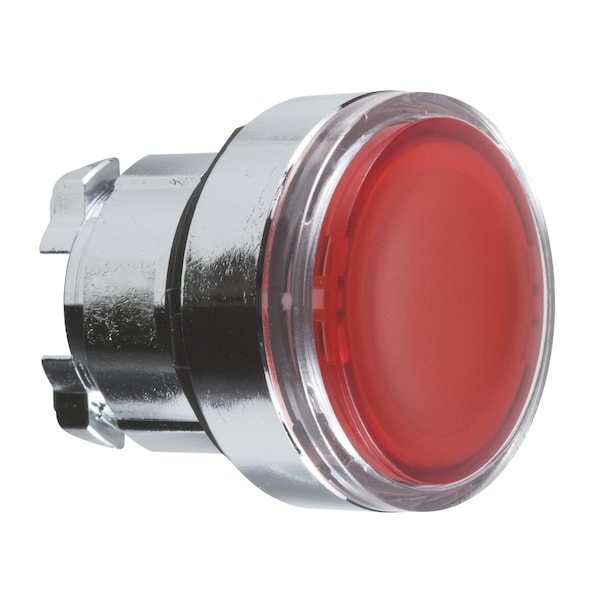

Cabeza para botón pulsador iluminado, Harmony XB4, metal, rojo empotrado, 22mm, LED universal, retorno por resorte, para insertar leyenda.
| Type of Operator | spring return |
|---|---|
| Item | Red flush illuminated pushbutton head 02 |
| Bezel Material | chromium plated metal |
| Width | 29 mm |
| Height | 29 mm |
| Standards | JIS C8201-5-1, UL 508, IEC 60947-5-5, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1 |
| Product or Component Type | head for illuminated push-button |
| Operator Additional Information | for insertion of legend |
| Electrical Composition Code | M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting |
| Protective Treatment | TH |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Mounting Diameter | 22.5 mm |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Shape of Signaling Unit Head | round |
| Operator Profile | red flush, unmarked |
| Range of Product | Harmony XB4 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ik Degree of Protection | IK06 EN 50102 |
| Device Presentation | basic element |
| Device Short Name | ZB4 |
| Ambient Air Temperature For Storage | -40-70°C |
| Mechanical Durability | 10,000,000 cycle |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Cap/Operator or Lens Colour | red |
| Overvoltage Category | class I IEC 60536 |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Compatibility | universal LED |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Product Certifications | LROS (Lloyds register of shipping) || GL || DNV || UL Listed || CSA || BV |
| Cad Overall Depth | 30 mm |
| Package Quantity | 1 |
