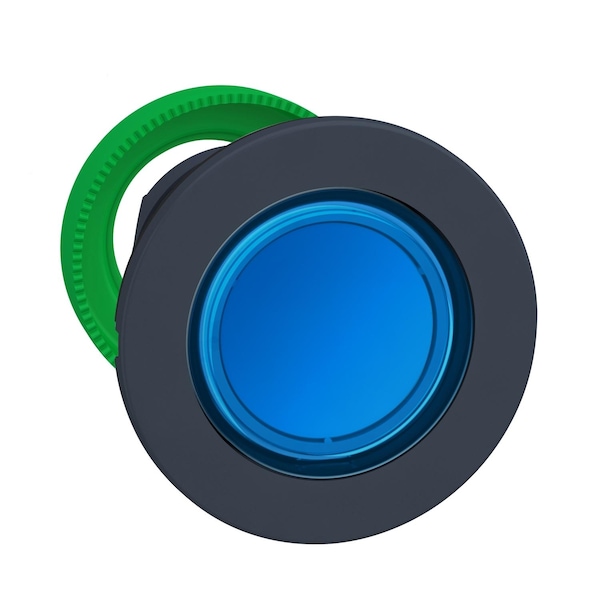

Cabeza para botón pulsador iluminado, Harmony XB5, antimicrobiano, plástico, azul, 30 mm, LED universal, lente lisa.
| Item | Blue Illuminated Push Button |
|---|---|
| Type of Operator | spring return |
| NEMA Rating | NEMA 13 || NEMA 4X |
| Standards | CE || UL || CSA |
| Width | 37 mm |
| IP Rating | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Height | 37 mm |
| Depth | 30 mm |
| Operator Color | Blue |
| Header | built-in, flush |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product or Component Type | head for illuminated push-button |
| Ambient Air Temperature For Storage | -40-70°C |
| Shape of Signaling Unit Head | round |
| Group of Product | flush push integral LED |
| Operator Additional Information | with plain lens |
| Device Presentation | basic element |
| Overvoltage Category | class II IEC 60536 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Marking | unmarked |
| Bezel Material | plastic |
| Main Group | illum push-button |
| Device Short Name | ZB5 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Electrical Composition Code | M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED |
| Protective Treatment | TC |
| Mechanical Durability | 10,000,000 cycle |
| Ambient Air Temperature For Operation | -40-70°C |
| Range of Product | Harmony XB5 |
| Ik Degree of Protection | IK03 conforming to EN 50102 |
| Mounting Diameter | 30.5 mm |
| Product Compatibility | universal LED |
| Package Quantity | 1 |
