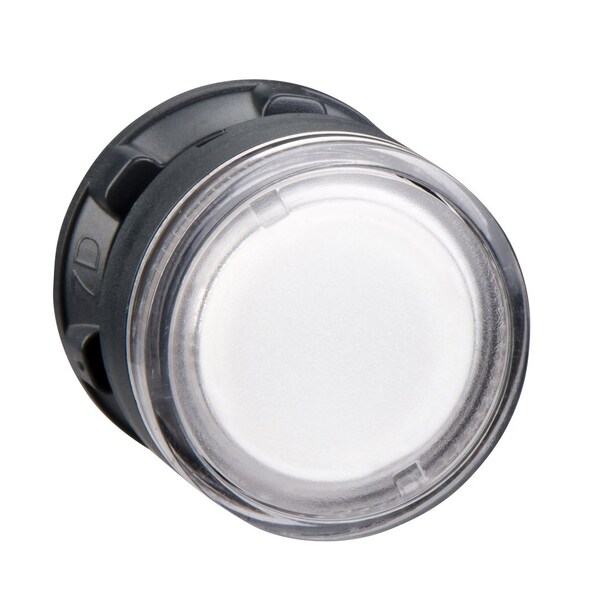

Cabeza para botón de presión iluminado, Harmony XB5, transparente empotrada, 22mm, bombilla BA9s, retorno por resorte, sin marcar.
| Type of Operator | spring return |
|---|---|
| Item | Clear flush illuminated pushbutton head |
| Bezel Material | dark grey plastic |
| Standards | IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, GB 14048.5, UL 508, JIS C8201-1 |
| Height | 29 mm |
| Width | 29 mm |
| Marking | unmarked |
| Range of Product | Harmony XB5 |
| Product or Component Type | head for illuminated push-button |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Main Group | push-button |
| Product Compatibility | BA 9s |
| Protective Treatment | TC |
| Group of Product | flush push BA9s |
| Device Short Name | ZB5 |
| Operator Profile | clear flush, unmarked |
| Electrical Composition Code | M7 6 single front mounting BA 9s, M8 6 single and double front mounting BA 9s, M9 2 single front mounting BA 9s and transformer, MF2 2 single front mounting BA 9s |
| Cap/Operator or Lens Colour | clear |
| Mounting Diameter | 22 mm |
| Mechanical Durability | 10,000,000 cycle |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Operator Additional Information | with plain lens |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Ambient Air Temperature For Storage | -40-70°C |
| Ambient Air Temperature For Operation | -40-55°C |
| Ik Degree of Protection | IK05 EN 50102 |
| Shape of Signaling Unit Head | round |
| Station Name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Device Presentation | basic sub-assemblies |
| Head Type | Standard |
| Cad Overall Width | 29 mm |
| Product Certifications | GL || BV || LROS (Lloyds register of shipping) || UL Listed || DNV || CSA |
| Cad Overall Depth | 32 mm |
| Cad Overall Height | 29 mm |
| Package Quantity | 1 |
